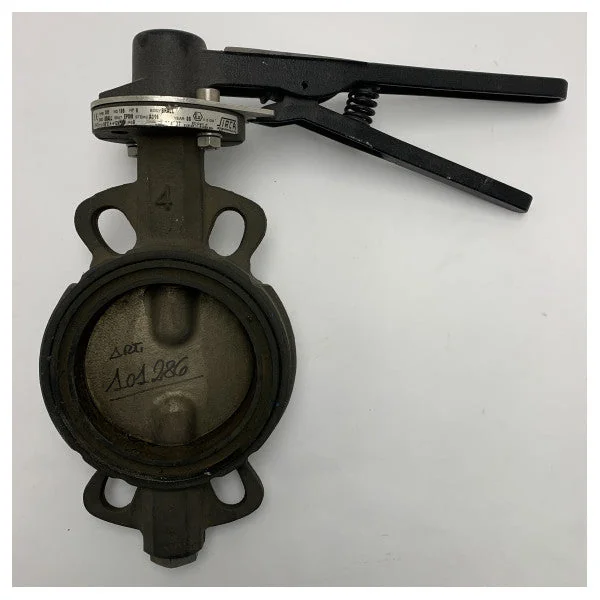

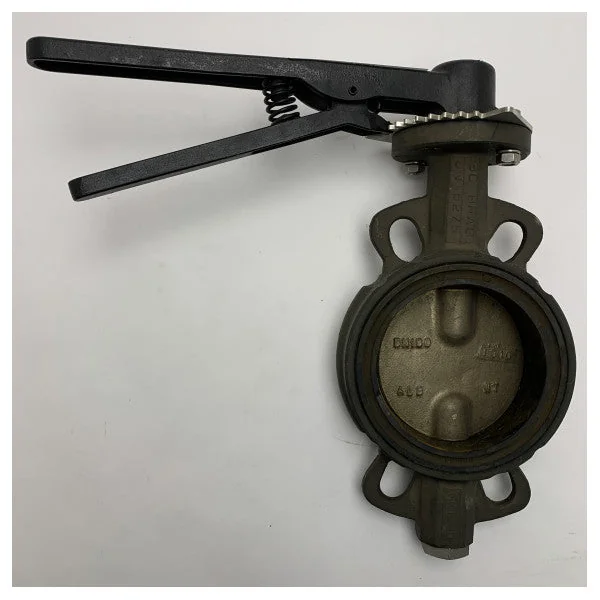

This high-quality butterfly valve is specifically designed for marine applications and guarantees reliable and efficient control of fluid flows. With its robust construction and user-friendly handle, this valve ensures easy operation, even under challenging conditions on the water. The combination of durable materials and a sleek design ensures a long lifespan and optimal performance in marine environments.

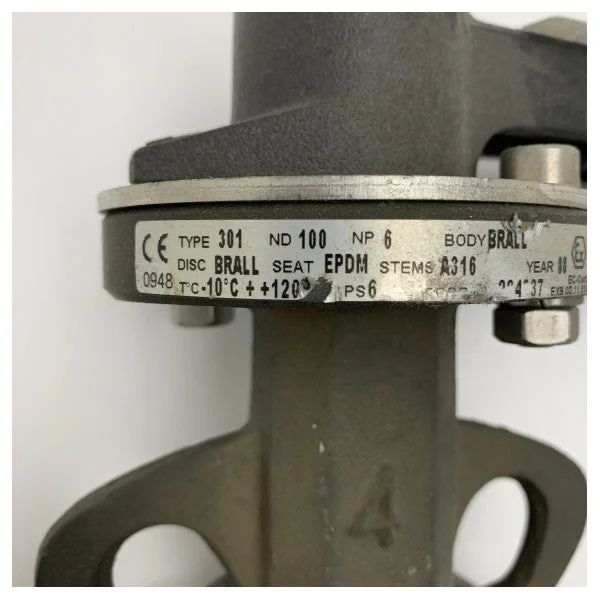

- Type: BUTTERFLY VALVE TYPE 301
- Size: DN 100 (nominal diameter 100 mm)
- Pressure class: PN 6 (6 bar)

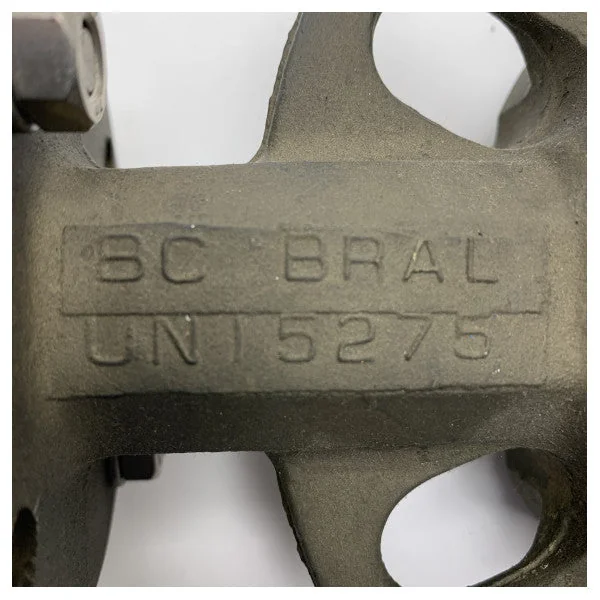

- Body material: Bronze (BRALL)
- Disc material: Bronze (BRALL)
- Seat material: EPDM rubber
- Stem: Stainless steel A316 (AISI 316)
- Temperature range: -10 degrees Celsius to +120 degrees Celsius
- Mounting: Flange mounting according to UN15275 standard

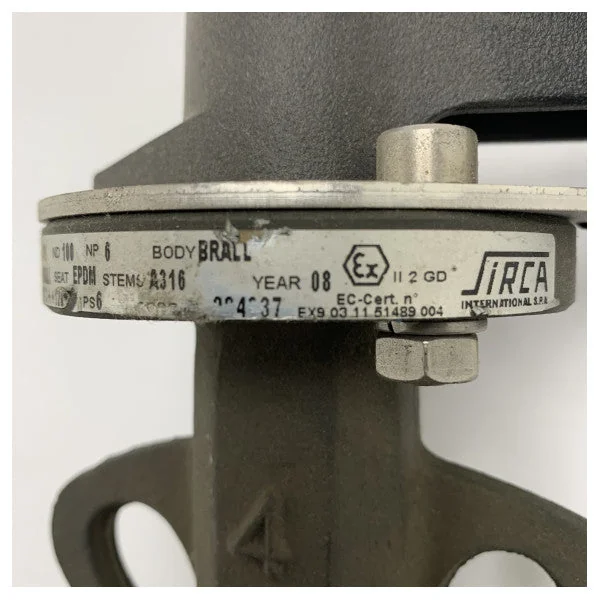

- Certification: CE approved with Ex marking for use in explosive atmospheres (Ex II 2 GD)
- Operating mechanism: Handle with spring
- Application: Suitable for marine systems, water treatment, and other fluid control
- Resistance to corrosion and weather influences, ideal for use in marine environments
