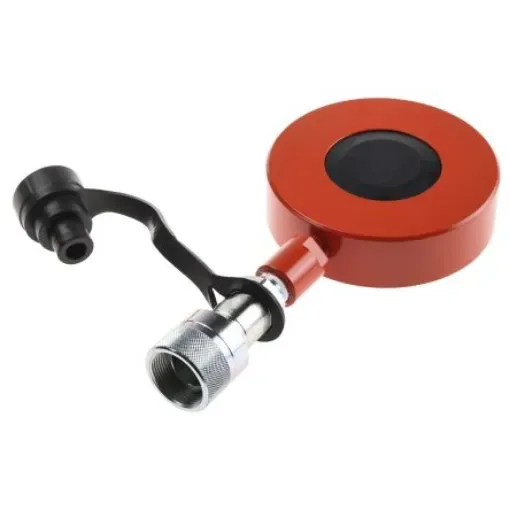

Hi-Force Single, Portable Low Height Hydraulic Cylinder, HVL30, 32t, 6mm stroke

Stroke = 6mm
Capacity = 32t
Closed Height = 34mm
Single/Double Acting = Single
Manufacturer Series = HVL
Extended Height = 40mm
Cylinder Effective Area = 45.6cm²
Oil Capacity = 27cm³
Outside Diameter = 120mm
Maximum Operating Pressure = 700bar
Weight = 3kg

Safety Note - High pressure hydraulic equipment can work at extremely high pressures and careful attention should be paid to working pressures when choosing accessories. Very Low Height Cylinders. Very low height cylinders combine minimum closed height with maximum stroke to provide a short adjusting and lifting force in very confined work areas All cylinders have a 6mm stroke and are manufactured to the same high standards as our existing range of cylinders
