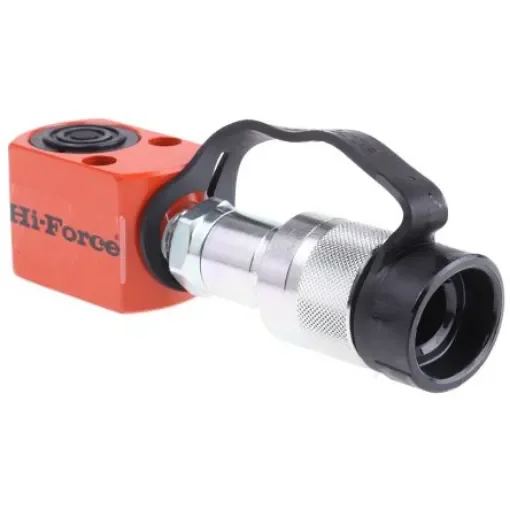

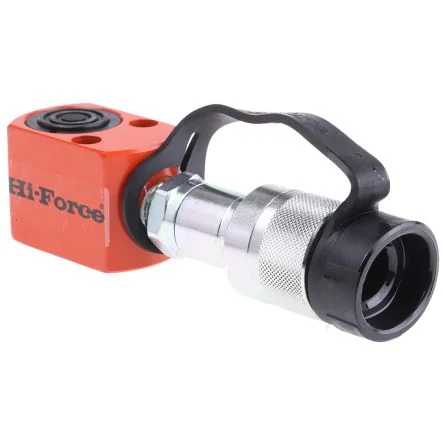

Hi-Force Single, Portable Low Height Hydraulic Cylinder, HPS51, 4.5t, 16mm stroke
Compact hydraulic cylinder with 4.5t capacity and 16mm stroke, ideal for confined spaces.
Manufacturer part number: HPS51
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Stroke = 16mm
Capacity = 4.5t
Closed Height = 42mm
Single/Double Acting = Single
Manufacturer Series = HPS
Extended Height = 58mm
Cylinder Effective Area = 6.4cm²
Oil Capacity = 10cm³
Outside Diameter = 60mm
Maximum Operating Pressure = 700bar
Weight = 900g
Safety Note - High pressure hydraulic equipment can work at extremely high pressures and careful attention should be paid to working pressures when choosing accessories. Low Height Pad Cylinders-High Pressure. Combine minimum collapsed height with optimum stroke They provide a short adjusting and lifting force in confined work areas Steel stop rings further increase the cylinders capacity to withstand side loads and restrain the piston at full extension
