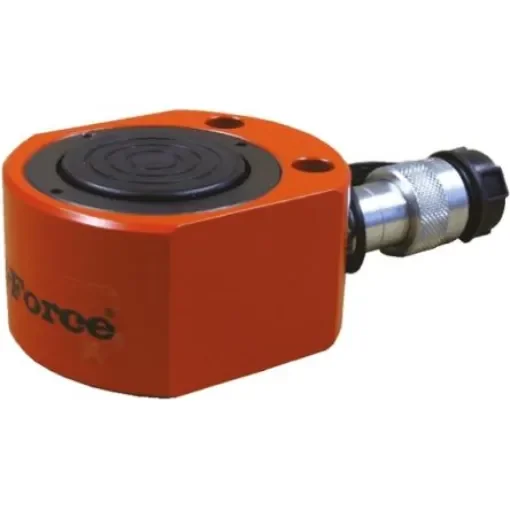

Hi-Force Single, Portable Low Height Hydraulic Cylinder, HPS500, 50t, 15mm stroke
Efficiently lift heavy loads with this compact 50t hydraulic cylinder, perfect for confined spaces.
Manufacturer part number: HPS500
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Stroke = 15mm
Capacity = 50t
Closed Height = 67mm
Single/Double Acting = Single
Manufacturer Series = HPS
Extended Height = 82mm
Cylinder Effective Area = 71.3cm²
Oil Capacity = 107cm³
Outside Diameter = 140mm
Maximum Operating Pressure = 700bar
Weight = 6.6kg
Safety Note - High pressure hydraulic equipment can work at extremely high pressures and careful attention should be paid to working pressures when choosing accessories. Low Height Pad Cylinders-High Pressure. Combine minimum collapsed height with optimum stroke They provide a short adjusting and lifting force in confined work areas Steel stop rings further increase the cylinders capacity to withstand side loads and restrain the piston at full extension
