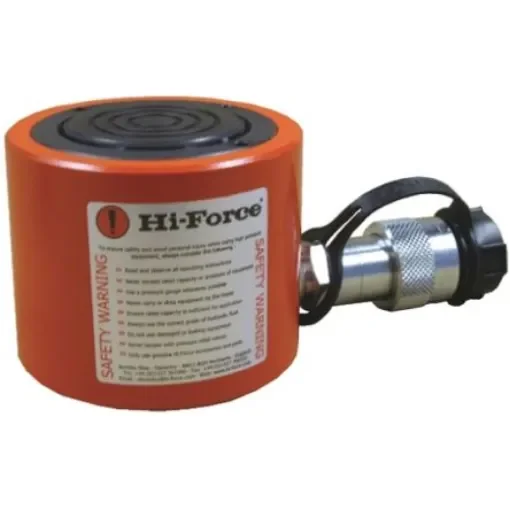

Hi-Force Single, Portable Low Height Hydraulic Cylinder, HLS502, 50t, 60mm stroke
Efficiently lift and level with the Hi-Force 50t portable hydraulic cylinder, designed for low height applications.
Manufacturer part number: HLS502
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Stroke = 60mm
Capacity = 50t
Closed Height = 126mm
Single/Double Acting = Single
Manufacturer Series = HLS
Extended Height = 186mm
Cylinder Effective Area = 71.3cm²
Oil Capacity = 428cm³
Outside Diameter = 127mm
Maximum Operating Pressure = 10000 psi
Weight = 10.4kg
Safety Note - High pressure hydraulic equipment can work at extremely high pressures and careful attention should be paid to working pressures when choosing accessories. Low Height Cylinders. Use where collapsed height is a premier requirement in a lifting, levelling or pushing application Non-metallic bearings on the piston rod and the stop ring provide excellent wear resistance with low friction and high side load bearing capacity
