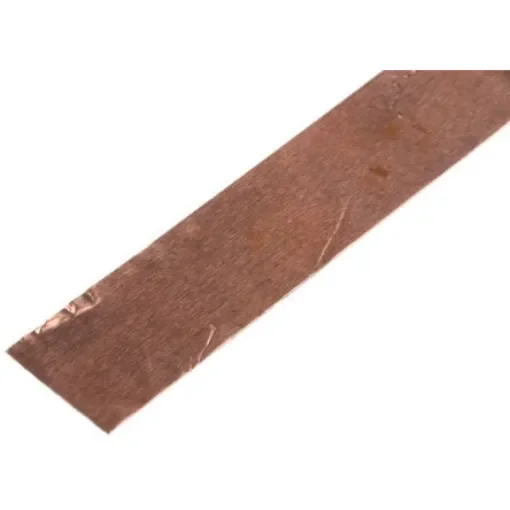

Hi-Bond HB 740 Conductive Metallic Tape, 12mm x 33m - HB 740 12mm x 33m

Tape Type = Copper Tapemm
Foil Thickness = 0.035mm
Width = 12mm
Length = 33m
Conductivity = Conductive
Adhesion Strength = 2.7 N/cm
Adhesive Material = Acrylic
Material Plating = None
Tensile Strength = 43N/cm
Maximum Temperature Resistance = +130°C
Minimum Temperature Resistance = -30°C
Model Number = HB 740

Hi-Bond 740 Conductive Copper Foil Tape. This 740 Copper Foil Tape from Hi-Bond features a conductive acrylic pressure sensitive adhesive with a uniform dispersion of conductive particles. The copper foil carrier is 35 microns thick, with an additional 30 micron-thick coating of acrylic adhesive containing nickel silver conductive particles. Applications:. Electro-magnetic compatibility, shielding, radio frequency insulation, earthing and static electric control
