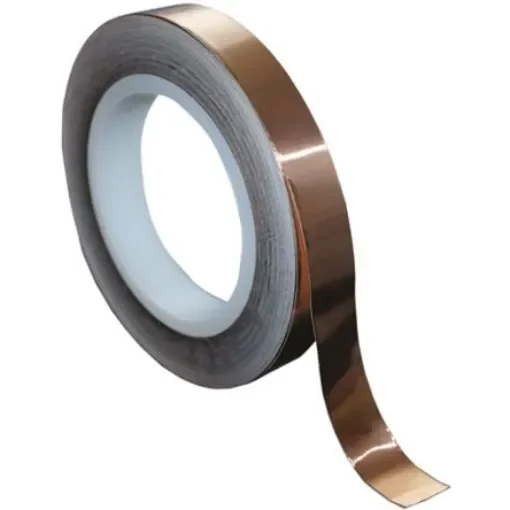

Hi-Bond HB 720A Conductive Metallic Tape, 19mm x 33m - HB 720A 19mm x 33m

Tape Type = Copper Tapemm
Foil Thickness = 0.025mm
Width = 19mm
Length = 33m
Conductivity = Conductive
Adhesion Strength = 2.7 N/cm
Adhesive Material = Acrylic
Material Plating = None
Tensile Strength = 43N/cm
Maximum Temperature Resistance = +130°C
Minimum Temperature Resistance = -30°C
Model Number = HB 720A

Hi-Bond Copper Foil TapeThe Hi-Bond copper foil tape has a conductive acrylic pressure-sensitive adhesive with a uniform dispersion of conductive particles of nickel silver. This tape is 0.07mm thick, 19mm wide and 33m long. The foil carrier is 25µ thick, with an additional 40-micron thick coating of acrylic adhesive containing nickel silver conductive particles.Features and BenefitsCopper foil (25µm/.001in) Release liner Operating temperature ranges between -30°C and 130°C Peel strength is 1.6lb/in Tensile strength is 43N/cmApplicationsElectro-magnetic compatibility Shielding Radio frequency insulation Earthling and static electric control Shielding of signal cable Shielding signal cable or FCC repairs Blinding the end of knitted wire mesh of shielding cable Shield leaking or invading electromagnetic waves Tape for EMR/RFI shielding
