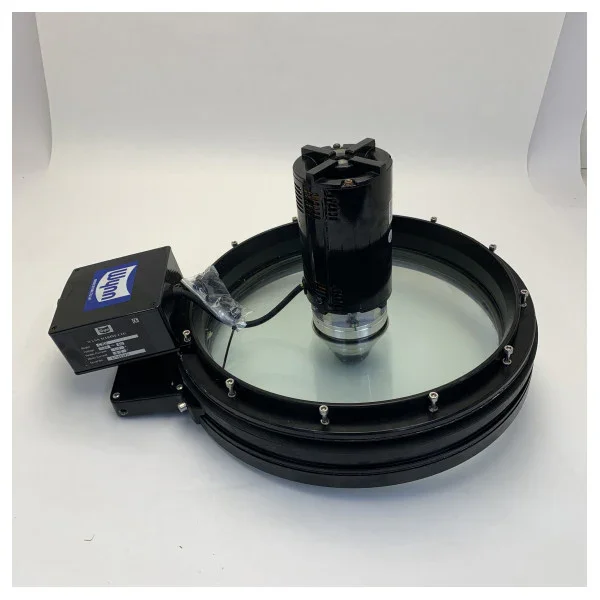

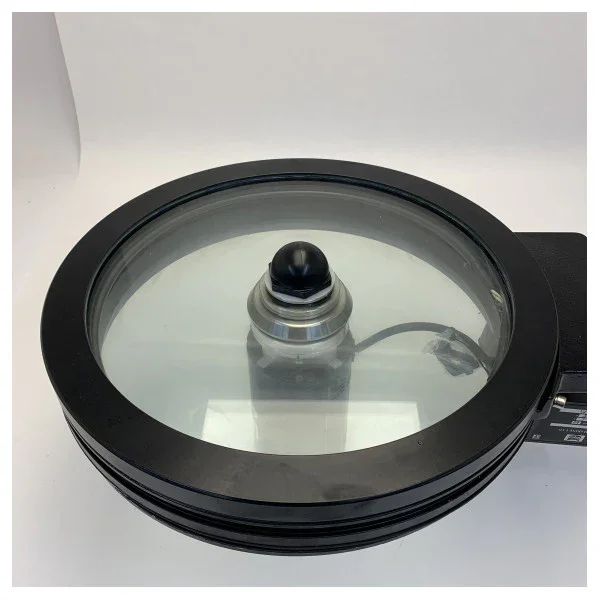

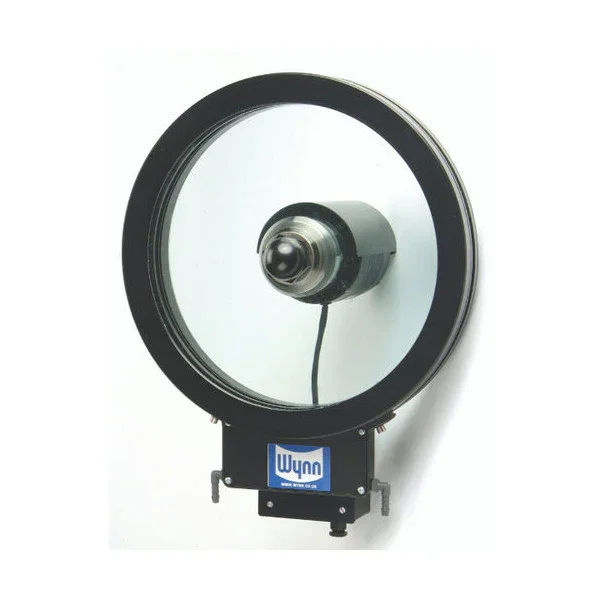

Hepsworth Wynn Marine Type C350 Clear View Screen 230V: Optimal Visibility Under All Conditions
Ensure perfect and continuous visibility on board with the Hepsworth Wynn Marine Type C350 Clear View Screen. This robust and reliable system is specifically designed for heavy maritime applications, guaranteeing clear visibility even in heavy rain, snow, or ice. The C350 is the ideal solution for all types of commercial vessels and specialized installations onshore.
Key Features

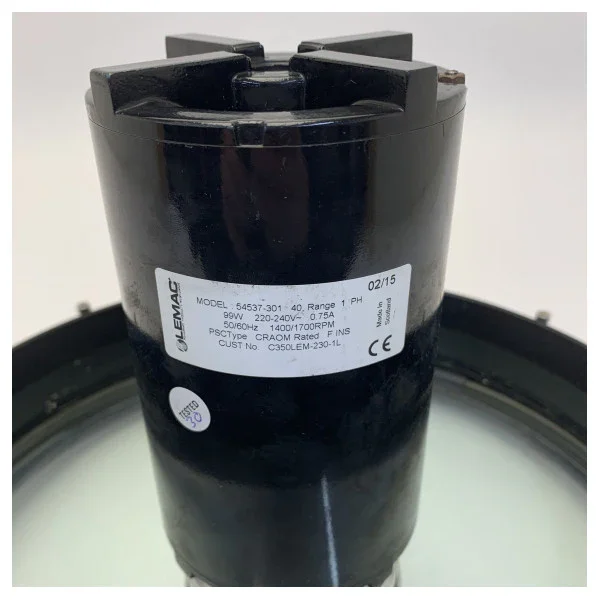

- High Rotation Speed: The powerful induction motor provides high rotation speeds, resulting in unobstructed visibility, even under severe conditions and with a lot of seawater spray. The operational speed is approximately 1600 revolutions per minute.
- Reliable and Robust: Made with stainless steel and marine grade aluminium components and equipped with toughened glass for a long lifespan.
- Effective Defrosting: Equipped with a powerful 250 Watt defrosting heater for quick ice and condensation removal.
- Low Maintenance Needs: The design with sealed bearings requires no maintenance, ensuring high reliability throughout its entire lifespan. The motor has an IP33 protection rating.
- Silent Operation: The direct-driven, dynamically balanced motor ensures smooth and quiet operation, without noise from brushes or gearboxes.
Product Specifications

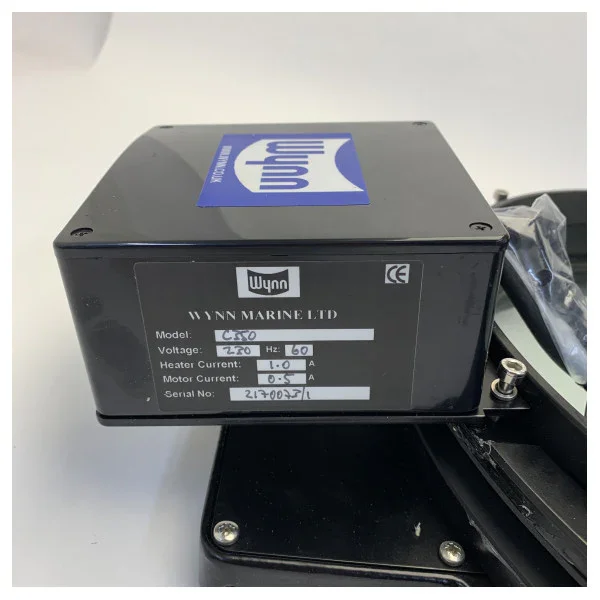

This model operates on a voltage of 230V AC 50Hz (1 phase, 2-pole motor). The Clear View Screen is suitable for installation in ship windows with a glass thickness between 10 and 32 millimeters (this must be specified at the time of ordering). The required cutout in the glass has a diameter of 390 to 392 millimeters. The clear light diameter (the effectively visible rotating part) is 350 millimeters. The power of the motor is approximately 120 watts. The net weight is approximately 15 kilograms. The product fully complies with the ISO 3904 specification.
Invest in the Wynn Marine Type C350 for unparalleled safety and visibility at sea.
