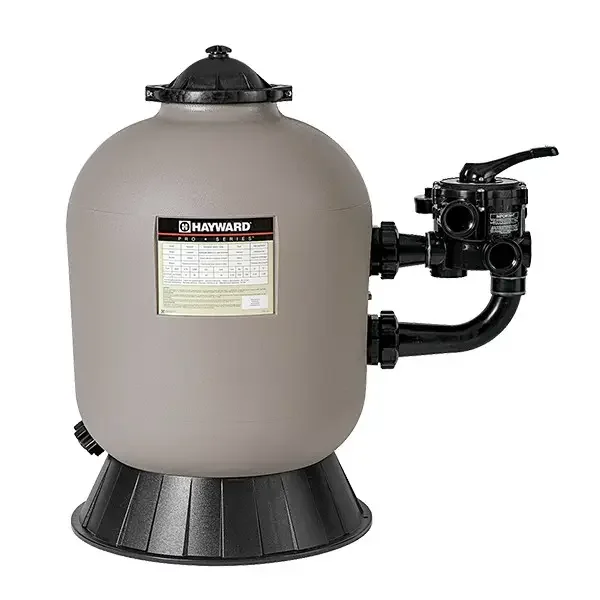

Hayward Sand Filter Ø 895 - 30 M³/H

Brand: HAYWARD
The HAYWARD Sand Filter Ø 895 provides efficient water filtration for pools with a flow rate of 30 m³/h.
GTIN: 0610377073950

Hayward sand filter ø 895 - 30 m³/h

THE FILTER

The Hayward Pro pool filter range is designed to meet your requirement for impeccable water filtration in your pool. Made from blow-moulded polyethylene, these filters can be installed both indoors and outdoors, compatible with all types of treatment for sand, glass, or even zeolite filtration. We offer 4 filter sizes from 6 to 30m/h.

Thanks to their Variflo 6-position valve, you have a wider range for cleaning your water: cleaning and rinsing the filter and pipes, draining, water circulation, system shutdown.

With a filtration between 40 and 50 microns, Hayward Pro filters have a maximum pressure of 3.5 bar.

Confident in the durability of its product, Hayward guarantees its tank for 10 years and its equipment for 5 years.

ITS STRENGTHS

Blow-moulded polyethylene filter high density with automatic air relief

Corrosion-resistant tank made of high-density blow-moulded polyethylene and coloured throughout, weather-resistant with minimal maintenance.

Injected ABS base for perfect stability of the filter

Integrated high diffuser ensuring even water distribution over the sand bed.

Internal pipes designed to reduce pressure losses

High-performance water return collector with self-cleaning perforated strainers on 360° to allow balanced flow and backwashing.

Dome secured with a clamp to facilitate access or inspection of the filter

360° collector and diffuser made of injected plastic

Integrated drain plug allowing easy draining of the filter without losing the sand

Supplied with a Vari Flo (TM) 6-position valve with pressure gauge and flow indicator

Guaranteed for 5 years.

ModelsFilter 10 m³/hFilter 14 m³/hFilter 22 m³/hFilter 30 m³/h
ReferenceS210SXES244SXES310SXES360SXE
Filter diameterØ 510mmØ 612mmØ 762 mmØ 895 mm
Flow rate10 m³/h14 m³/h22 m³/h30 m³/h
Connection1''1/2 (Ø50)1''1/2 (Ø50)2" (Ø63)2" (Ø63)
Sand weight100 kg150 kg250 kg350 kg
Filtration area0.20 m20.28 m20.45 m²0.64 m²
Side A510 mm612 mm762 mm895 mm
Side B498 mm594 mm725 mm880 mm
Side C521 mm521 mm585 mm585 mm
Side D825 mm875 mm1070 mm1230 mm
Side E810 mm920 mm1008 mm1147mm
