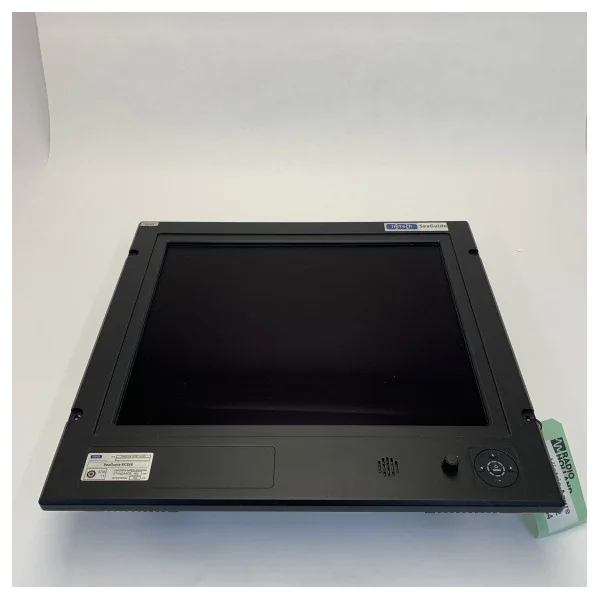

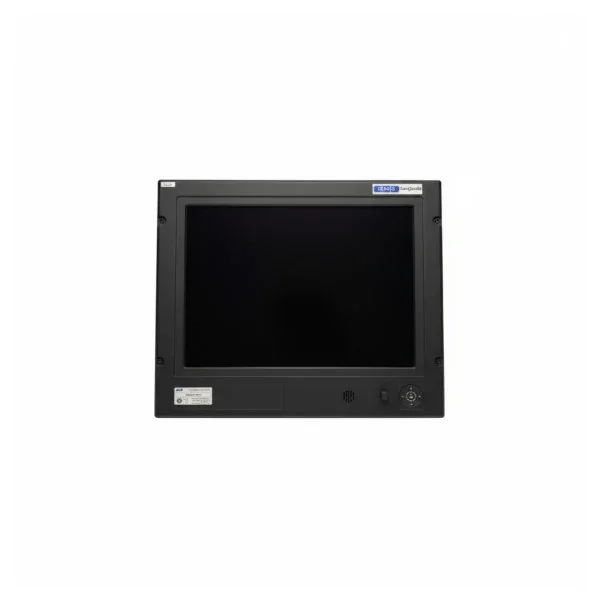

The Hatteland JH19T14MMD-DA1 is a high-quality, multifunctional 19 inch maritime display designed for use in the most demanding environments at sea. This display combines reliability with advanced features, making it an essential tool for navigation, automation, and monitoring on board ships.
Features and Benefits
- Maritime Reliability: Specially built for the maritime industry, with a robust construction that withstands shocks, vibrations, and temperature fluctuations.
- Advanced Display Technology: Equipped with LED backlighting for a long lifespan and MVA (Multi-domain Vertical Alignment) TFT Active-matrix LCD technology for excellent image quality and wide viewing angles.
- Multi-power Input: Supports both AC (115/230V) and DC (24V) power input, providing flexibility and compatibility with various onboard systems.
- Picture-in-Picture (PIP) and Picture-by-Picture (PBP): These features allow multiple video sources to be displayed simultaneously, which is essential for multitasking on the bridge.
- Fully Dimmable: Brightness is adjustable from 0-100%, allowing the display to be optimally adapted to lighting conditions, both during the day and at night.
- Robust Connections: Equipped with various input and output options including DVI-I, composite video, and RGB for seamless integration with other ship systems.

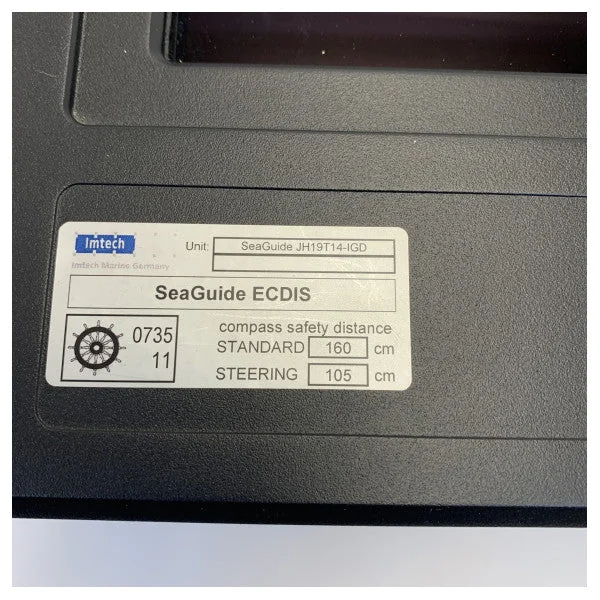

- ECDIS Compliant: Meets the requirements for electronic chart display systems.
Technical Specifications
- Screen Size: 19.0 inch
- Native Resolution: 1280 x 1024 (SXGA)
- Aspect Ratio: 5:4
- Technology: LED Backlight, MVA (Multi-domain Vertical Alignment) LCD
- Luminance: 350 cd/m² (typ.)
- Contrast Ratio: 1500:1 (typ.)
- Response Time: 35 ms (typ.)
- Viewing Angle: 85 degrees (up/down/left/right)
- Connections:
- DVI-I
- Composite Video
- RGB In
- RGB Out
- SCOM USB (Type A)
- SCOM Ethernet (RJ45)
- SCOM RS-232 (9-pin D-SUB)
- Dimensions (WxHxD): 483 x 444 x 82 mm
- Weight: 7.3 kg
- Power Supply: 115/230 VAC - 50/60Hz + 24 VDC (Multi-power)
- Power Consumption: 50W (typ.) - 60W (max.)
