Hatteland JH 26T11 IGD-MA6-AOBA-109 SeaGuide ECDIS Marine Display
The Hatteland JH 26T11 IGD-MA6-AOBA-109 is a high-quality 26 inch marine display from the SeaGuide series, specially designed for critical navigation applications at sea. This screen offers the perfect balance between superior image quality and maritime reliability. Thanks to the full ECDIS calibration, this display meets the strictest international requirements for electronic chart systems, making it an essential component for any modern bridge.
Maximum Visibility and Performance
With an impressive widescreen format of 26 inches and a resolution of 1920 by 1200 pixels, this screen provides a clear and detailed overview of navigation data. The advanced LED backlighting ensures excellent contrast and a wide viewing angle, which is crucial in changing light conditions on the water. The display is equipped with Optical Bonding, which prevents internal condensation and minimizes reflections.
Robust and User-Friendly

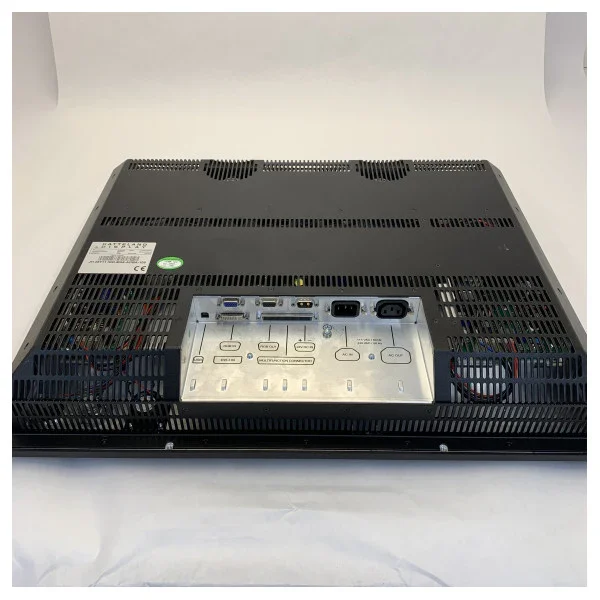

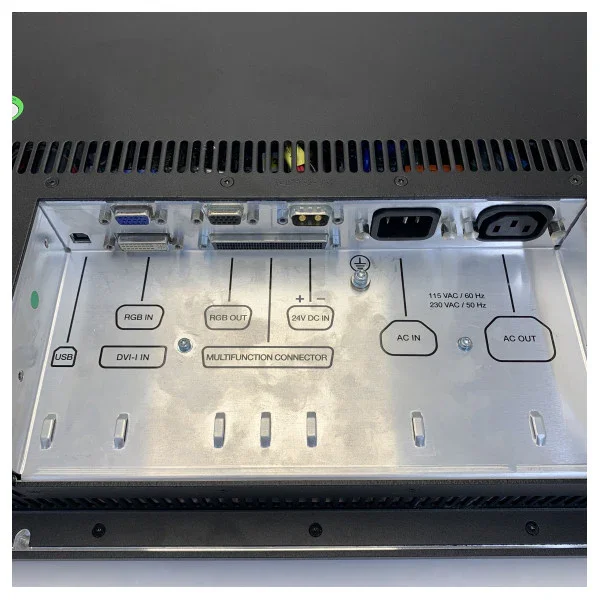

The JH 26T11 is built to perform in the most challenging environments. The device features a glass front with touch control for intuitive navigation. Integration into your existing system is seamless thanks to the various connection options, including DVI and VGA. This model is specifically configured as an IGD version (Integrated Display Computer), ensuring a streamlined installation without loose components.
Key Features
- ECDIS Compliant: Fully calibrated for accurate color representation of nautical charts.
- Large Screen Area: 26 inch widescreen for optimal situational awareness.
- Optical Bonding: Eliminates moisture issues and improves readability in sunlight.
- Maritime Certification: Tested to the highest standards for vibrations, shocks, and temperature.
- Multi-Power: Supports both AC and DC power supply for maximum flexibility.
Technical Specifications
Part Specification ModelHatteland JH 26T11 IGD-MA6-AOBA-109Screen Size26 inches (16:10 ratio)Resolution1920 x 1200 pixels (WUXGA)Panel TypeTFT Active Matrix with LED BacklightBrightness350 cd per m2Contrast Ratio1500:1Input SignalsDVI-D, DVI-I and VGAPower Supply115 to 230V AC or 24V DC (Auto-switching)MountingConsole or VESA mounting optionsIP RatingIP66 on the front when correctly mounted
