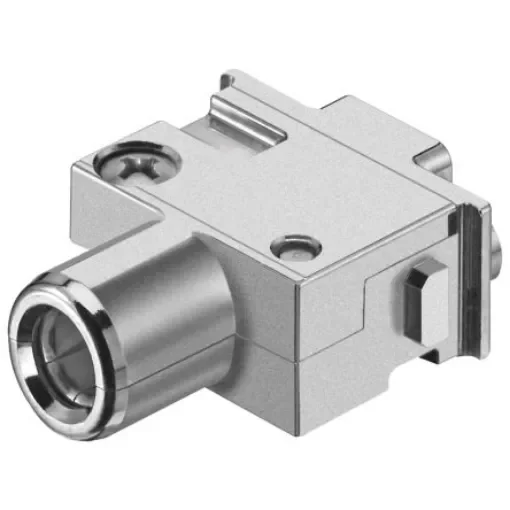

HARTING Power Connector Module, Female, Han-Modular Series, 1 Contacts - 09140013172

Harting Han-Modular PE Modules. Han PE modules that form part of the Han-Modular series which is designed for combining different transmission data into one connector. The PE module consists of 2 PE module halves, 1 PE male or female crimp contact and 1 contact pressure plate. These Han PE modules are designed to connect cables with large diameters inside Han-Modular hinged frames. Standard power cables with large cross sections can also be connected. The leading PE contact has a robust design and a 100 A rating and forms an electrically conductive connection to the frame, hoods and housings to DIN EN 61984. The housings of these Han PE modules have a rugged design and are made from diecast zinc with a nickel plating. These Han PE modules accept a wide range of cable sizes, from 16 mm² to 35 mm². Features and Benefits. Rugged diecast zinc housing Robust 100 A PE contact Accepts large cable diameter sizes – 16 mm² to 35 mm² Suitable for standard power cables Conductive connection to DIN EN 61984
