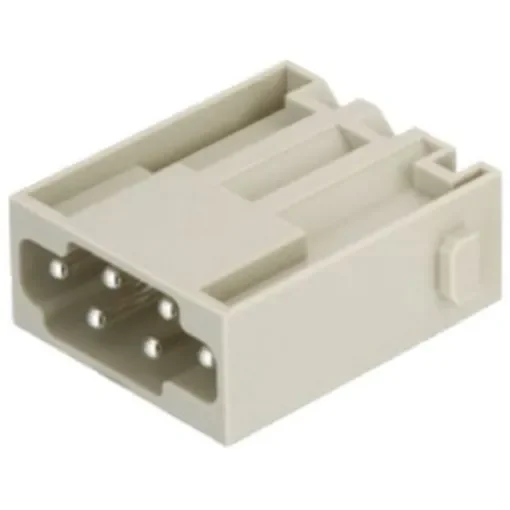

HARTING Heavy Duty Power Connector Module, 16A, Male, Han-Modular Series, 6 Contacts - 09140062633

DIN EN 60 664-1, DIN EN 61 984. Han E Quick Lock Modules. Han E Quick Lock modules offer an innovative and as the name suggest quick locking method of conductor insertion, no special tooling is required, just a terminal screw driver, so is ideally suited to on site assembly. These Quick Lock modules are compatible with standard Han E modules assembled with crimp terminals. Ideal for use with the Han-Modular series, which combine different transmission media and contact types within a single connector. Rated at 500V 16A Copper alloy contacts Quick Lock termination wire range 20-14 AWG (0.5 to 2.5mm ;sup>2 ;/sup>) Polycarbonate body material Over 500 Mating cycles Operating temperature -40 to +125 °C.
