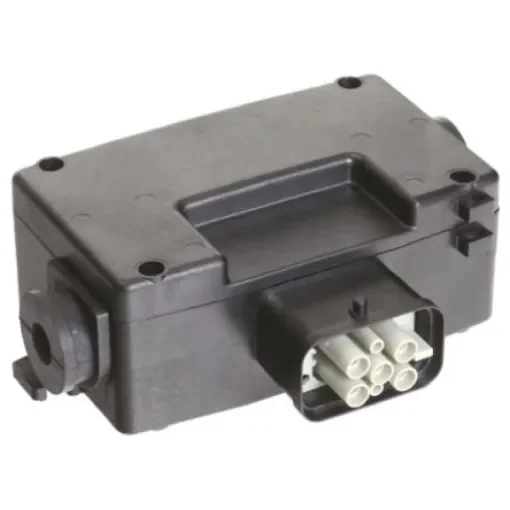

HARTING, Han Power S IP65 Black Surface Mount 6P + E Industrial Power Socket, Rated At 10A, 600 V - 09120084806

Current Rating = 10A
Plug/Socket = Socket
Pole Format = 6P + E
Voltage Rating = 600 V
Mounting Type = Surface Mount
Gender = Female
Body Orientation = Straight
Termination Method = IDC
Series = Han Power S
Colour = Blackmm²
Minimum Operating Temperature = -25°C

DIN EN 61984, DIN EN 60664-1. Han-Power® S Serial Bus Power Connectors. Harting Han-Power® S serial bus power connectors are suitable for adding additional power connections within an existing circuit, the outer insulation of the cable is stripped to the desired length and the wires are inserted into the Han-Power® S and tapped via the insulation displacement terminals, offering a simple and effective method of adding to an established power network. "6 IDCs + PE for 2.5 mm ;sup>2 ;/sup> up to 4 mm ;sup>2 ;/sup> wire gauge No interruption of the energy supply Space-saving and compact design Leading protective ground in Han® Q 8/0 insert Assembled with standard tools T-functionality for max. 500 V: - energy bus structure: 7 x 4 mm ;sup>2 ;/sup> - power supply structure: 7 x 2.5 mm ;sup>2 ;/sup> Distribution to device can be realized with a Han Q 8/0 cable to cable housing
