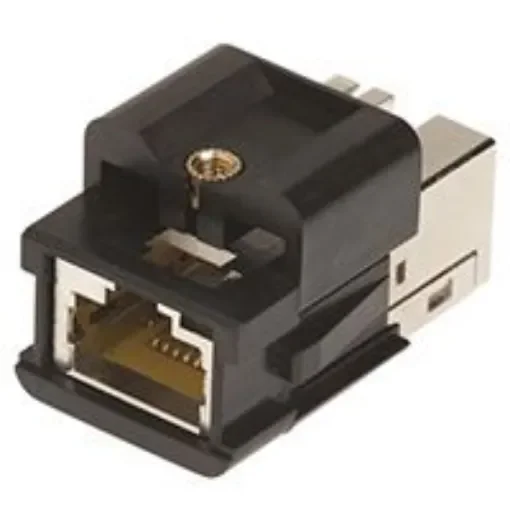

HARTING HAN 3A Series Female RJ45 Connector, Panel Mount, Cat6 Straight 8 -Way - 09452001560
Reliable HARTING HAN 3A RJ45 connector for seamless 1/10 Gigabit Ethernet connections.
Manufacturer part number: 09452001560
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Ethernet Connector Type = RJ45 Connector
LAN Category = Cat6
Mounting Type = Panel Mount
Number of Ways = 8
Orientation = Straight
IP Rating = IP65, IP67
Length = 21.2mm
Width = 21.5mm
Depth = 36.3mm
Series Number = 09452
Cable not included. Han® 3A RJ45 10G. These Harting Han® 3A RJ45 10G connectors comprise of only two parts, the movable cable manager mounted on the connector body allows the simple insertion of wires and always guarantees a fault free circuit. For rapid identification of the correct position of the coloured individual wires, the cable manager has a label containing a circuit plan. After wiring the connector a portion of the label remains on the plug thus allowing simple recognition of the relative contact position in the cable manager on re-wiring these Harting Han 3A RJ45 10G connectors. All models are highly reliable and excellent quality. Features ; Benefits. • Field installable using IDC-technology. • For solid and stranded wire AWG 27 to AWG 22. • Cat. 6, transfer class EA, suitable for 1/10 Gigabit Ethernet. • Temperature range –40°C to +70 °C. • Degree of protection IP65 / IP67
