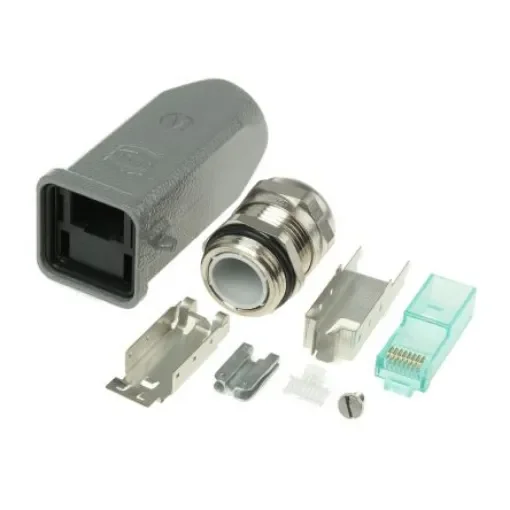

HARTING Han 3A RJ45 Series Male RJ45 Connector, Cable Mount, Cat6a, UTP Shield Straight 8C -Way - 09451151520

Ethernet Connector Type = RJ45 Connector
LAN Category = Cat6a
Mounting Type = Cable Mount
Number of Ways = 8C
Shield Type = UTP
Orientation = Straight
IP Rating = IP65, IP67
Length = 28.3mm
Width = 27.2mm
Depth = 95.35mm
Series = Han 3A RJ45

For cat 6 patch cords it is recommended to use one connector with a white wire manager and one with a blue cable manager in order to optimise the crosstalk between different signal pairs. Harting Han® 3A Cat 6A RJ45 Gigalink 10G 8 Pole Connector Set. Cat6a Han 3A RJ45 Gigalink 8 pole cable mount field assembly mountable connector set with a compact design and IP65/67 ingress protection. This Han® 3A cat 6A RJ45 Gigalink cable plug has a data transmission rate of 1/10 Gbit, 10/100 Mbit Ethernet, full shielding with 360° shielding contact, a minimum of 500 mating cycles and gold plated piercing contacts with a 1.5A, 125 V ac rating. The housing of this Han® 3A cat 6A RJ45 Gigalink plug connector is made from grey powder coated diecast zinc with a white wire manager. Features ; Benefits. The cable diameter range that this RJ45 accepts is 6.5 mm to 9.5 mm. Supplied with a housing, cable gland and instruction manual. A coding pin set is also available, see stock number ; 465-9763 465-9763. Crimp Tool: ; 771-4850 771-4850
