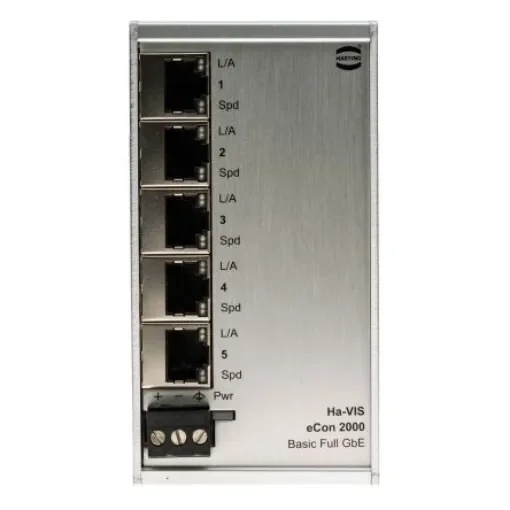

HARTING Ethernet Switch - 24024050010

RJ45 Ports = 5
Height = 113.5mm
Width = 60mm

HARTING Unmanaged Ethernet SwitchThe HARTING unmanaged Ethernet switch has 5, RJ45 ports and DIN rail mounting. It has a supply voltage of 24VDC to 48VDC. The Ha-VIS eCon 2000 series full GB family of unmanaged Ethernet switch is equipped with up to 16GB Ethernet ports. It facilitates cost-efficiency, quick expansion, and/or reconstruction of network infrastructures with high bandwidth requirements. All variants support extra-long Ethernet frames (jumbo frames). Owing to the extremely flat design, these switches can be accommodated in installations where space is restricted towards the cable connection at the front. Automatic detection of the transmission rate (auto-negotiation) and the wiring of the twisted pair data cable (auto-polarity and auto-MDI(X)) allow for simple plug and play.Features and Benefits3.06 MTBF (in million hours) Full gigabit Ethernet, non-blocking switch architecture according to IEEE 802.3 Support of jumbo frames (10KB) Surge protection and reverse polarity protection Minimum energy consumption due to energy-efficient Ethernet Housing width 60mm Frame size 10KB MAC table size 8k entries Packet buffer size 1MB Operating temperature ranges between 0°C and 55°CApplicationsMachinery and robotics Automation industrial Network infrastructures Wind energy Solar energy-transportation shipbuildingCertificationsCE certified IEC 60068-2-6 Vibration IEC 60068-2-6 Resonance search IEC 60068-2-27 Shock test
