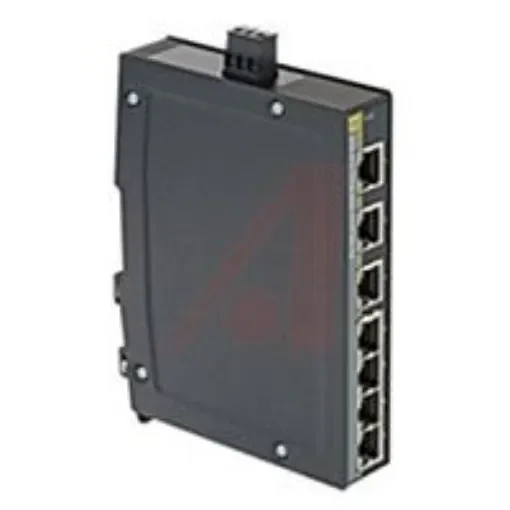

HARTING DIN Rail Mount Industrial Hub, 7 RJ45 Ports, 10/100/1000Mbit/s Transmission, 24V dc - 24034070000

Transmission Speed = 10/100/1000Mbit/s
RJ45 Ports = 7
Nominal Supply Voltage = 24 V dc, 48V dc
Mounting = DIN Rail
Depth = 114.2mm
Height = 164.4mm
Maximum Operating Temperature = +70°C
Maximum Supply Voltage = 60V dc
Minimum Operating Temperature = -40°C
Minimum Supply Voltage = 9V dc
Width = 25mm
Dimensions = 25 x 114.2 x 164.4mm

Ha-VIS eCon 3000 Full Ethernet Basic. The Ha-VIS eCon 3000 Full Gigabit family of unmanaged Ethernet switches is equipped with up to 7 Gigabit Ethernet ports. It allows for cost-efficient and quick expansion and/or reconstruction of network infrastructures with high-bandwidth requirements. The slender design of the switches enables a high packing density on the DIN Rail. The selection of switches includes various combinations of variants with RJ45 and fibre optic cables. Automatic detection of the transmission rate and the wiring of the twisted-pair data cable, allow for simple plug and play. Features and Benefits. Full Gigabit Ethernet non-blocking switch architecture according to IEEE802.3 2 to 7 Ethernet ports RJ45 and fibre optic ports Commercial temperature range 0°C to +55°C, industrial temperature range -40°C to +70°C Support of jumbo frame (10 kB) Wide range of power supply 24/48 V dc Surge protection and reverse polarity protection Minimum energy consumption due to energy-efficient Ethernet Optimised DIN Rail bracket. Applications. Machinery ; Robotics Automation Industrial network infrastructures Wind and solar energy Transportation Shipbuilding
