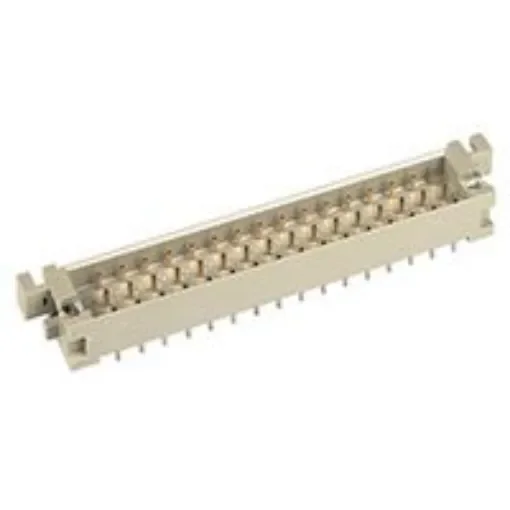

HARTING DIN 41612 48 Way 5.08mm Pitch, Type E Class C2, 3 Row, Straight DIN 41612 Connector, Plug - 09050486924

Number of Contacts = 48
Gender = Male
Number of Rows = 3
Body Orientation = Straight
Termination Method = Solder
Row Loading = e/c/a
Type = E
Pitch = 5.08mm
Class Rating = C2
Current Rating = 6A
Series = DIN 41612

Harting DIN 41612 Type E Backplane Power Connectors. Harting DIN 41612 type E backplane power connectors are designed for various application areas that demand high power, such as power supply and railway transportation.Harting power connectors complying with DIN 41612 are robust and durable with a good mating life cycle for board to board connections. Stock numbers ; 757-7976 757-7976 and ; 757-7960 757-7960 are railway approved with a railway classification of NFF 16-101, Smoke index: F1, Flammability class: I2. Operating temp -55 to +125 °C 6A max per contact Contact resistance up to 15mO Thermoplastic resin - glass fibre filled Copper alloy contacts
