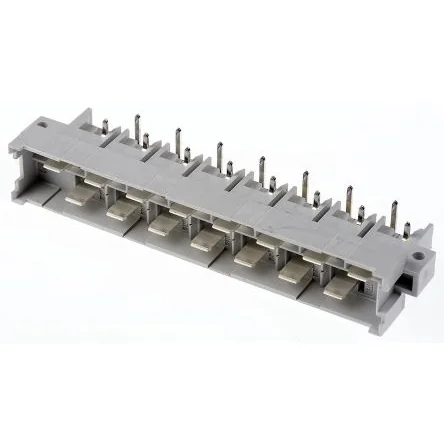

HARTING DIN 41612 15 Way 5.08mm Pitch, Right Angle Rectangular Connector, Plug - 09061152911222

Harting DIN 41615 Type H15 High Current Plugs. A range of High Current Type H DIN 41612 Plugs available in 4 styles all with Blades parallel to the PCB. ; 469-522 469-522 : 90° PCB mounting with standard contacts ; 481-954 481-954 : 90° PCB mounting with one Leading Contact (LC) mates first on position z32 ; 481-960 481-960 : 250 blade Plug has Leading Contact position z32 and is terminated with 6.3mm blades for 2.5mm ;sup>2 ;/sup> wire, for 250 size receptacles (not shrouded) ; 740-6966 740-6966 : 250 blade Plug standard contacts with 6.3mm blades for 2.5mm ;sup>2 ;/sup> wire, for 250 size receptacles (not shrouded) Stock number ; 757-7932 757-7932 is railway approved with a railway classification of NFF 16-101, Smoke index: F1, Flammability class: I2. 15-way 15A Plugs with hard silver plated copper alloy contacts Contact resistance up to 8mO Thermoplastic resin - glass fibre filled
