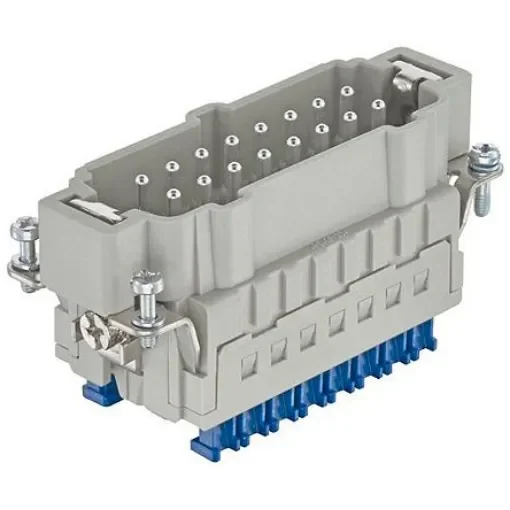

Harting Connector Insert, 32 Way, 16A, Male, Han ES Press, Panel Mount, 500 V - 09330162688

Number of Contacts = 32
Current Rating = 16A
Gender = Male
Series = Han ES Press
Type = Connector Insert
Mounting Type = Panel Mount
Voltage Rating = 500 V
Thread Size = M3 x 10
Pole Format = 32P
Number of Rows = 2
Manufacturer Size Code = 32 B
Body Orientation = Straight
Termination Method = Cage Clamp
Range = Han ES

Harting Han ES Press Modular Inserts. Han ES Press male and female modular inserts with a vibration proof design, silver plated contacts and a 16 A rated current. These Han ES Press inserts feature cage clamp terminations for quick and easy wiring, no additional tooling is required. The inserts accept a wire size range of 0.14 mm2 to 2.5 mm2. Optional ES Press plug in jumpers can be used to quickly and easily bridge contacts directly in the connector. The jumpers can also be used to implement Star and Delta Motor connections. These Han 16 ES Press and Han 24 ES Press modular inserts can be used with Han B, Han M, Han EMC, Han Easy Hood, Han HPR hoods and housing. All models are highly reliable and excellent quality. Features and Benefits. Cage clamp terminations for quick and easy wiring. Vibration proof design. Accept plug in jumpers for contact bridging and Star and Delta • • Motor connections. Multiple connection possibilities. Can with used with wide range of hoods and housings
