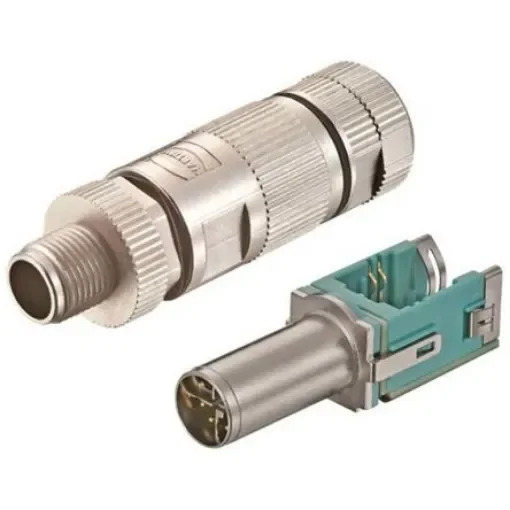

HARTING Circular Connector, 8 Contacts, Cable Mount, M12 Connector, Plug, Male, IP65, IP67, preLink Series - 20820050002

Number of Contacts = 8
Mounting Type = Cable Mount
Connector Size = M12
Plug/Socket = Plug
Contact Gender = Male
Termination Method = IDC
IP Rating = IP65, IP67
Current Rating = 1.18A
Series = preLink
Voltage Rating = 57.0 V
Mating Type = Quick Connect
Housing Material = Zinc
Contact Plating = Gold over Nickel
Minimum Operating Temperature = -40°C

ISO/IEC 11801 , IEC 61918. Harting Ha-VIS preLink M12 Connectors. Harting Ha-VIS preLink M12 Cat 5, Cat 6A, metal connectors available in two variants, D coded 4 pole and X coded 8 pole, both are robust and durable connectors, ideally suited for industrial and railway usage amongst others. Quick upgrades from fast Ethernet to Gigabit Ethernet are possible thanks to the uniform housings for 4-pole D-coded and 8-pole X-coded. PROFINET compliant, IP65, 67 rated, quickly and easily assembled onsite, insertion of the termination block when assembled onto the cable, into the respective jack requires no special tooling. Features. 875-5657: Ha-VIS preLink M12 plug D-coded 4-pole 875-5650: Ha-VIS preLink M12 plug X-coded 8-pole
