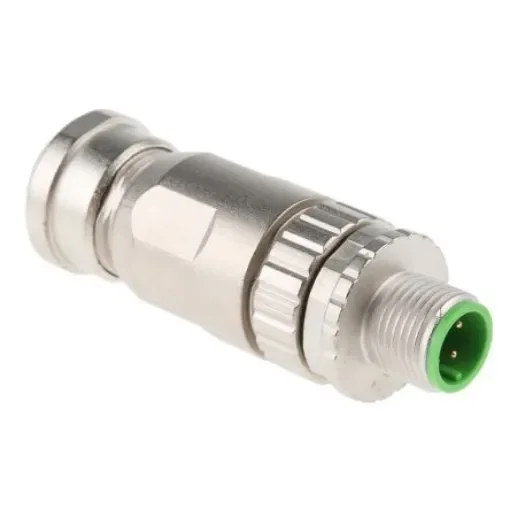

HARTING Circular Connector, 4 Contacts, Cable Mount, M12 Connector, Plug, Male, IP67 - 21033891402

HARTING Circular ConnectorThe HARTING Harax M12 series 4-poles male circular shielded connector has a plug connection. This connector has a voltage rating of 250V and a current rating is up to 7.5A per contact. The screw-on connectors mate with cable mount plugs and receptacles with a positive lock feature and quick-connect and disconnect capabilities. The connector shell is made from polyamide with zinc die-cast finish and gold-plated brass contacts. This connector also features a screw locking mating system that ensures a secure connection. This compact connector is ideal for use in challenging conditions.Features and BenefitsCable diameter ranges between 4mm and 8mm Conductor cross section is 16AWG D-coding Mating cycle is greater than 100cycles Operation temperature ranges between -30°C and 85°C Robust and reliable connection Screw termination Straight body orientation Water and dustproofApplicationsElectrical equipment General industrial applications HVAC equipment Industrial automationCertificationsIEC 61076-2-101 IP67 rated
