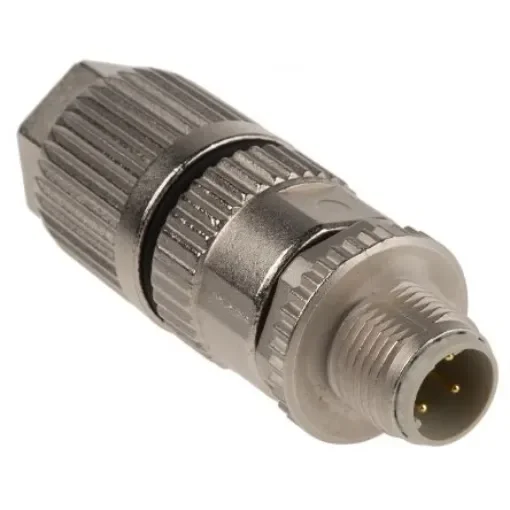

HARTING Circular Connector, 4 Contacts, Cable Mount, M12 Connector, Plug, Male, IP65, IP67, Harax M12 Series - 21032811405

Number of Contacts = 4
Mounting Type = Cable Mount
Connector Size = M12
Plug/Socket = Plug
Contact Gender = Male
IP Rating = IP65, IP67
Current Rating = 4.0A
Body Orientation = Straight
Voltage Rating = 50.0 V

M12 Ethernet Connector. Using connectivity expertise and advanced technology some connectors in the M12 series feature a unique Pushpull connection whilst others a screw-on. This push pull system creates an easy, fast and efficient locking system for transportation applications. What are these connectors used for?. Cable connection, PCB connection and automotive connections. Features and Benefits:. With the M12 Pushpull connectors, during the assembly or removal process a click signals the cables have successfully been connected or disconnected, saving a large amount of engage/disengage time. Slim shape and dimensions ideal for optimal spacing. Screw locking connectors also allow ease of use ensuring a tight fit. All-purpose use for signal, data and power with multiple termination techniques. With a Zinc die-cast housing this provides a robust connector which is in turn lightweight. The material contacts are Copper alloy and the surface contacts Gold plated. This assists in the prevention of oxidation and prevents tarnishing. Additional Features:. • Male connection • Screw locking • 4 contacts • Temperature -5 to +50 °C During connection • 0.6Nm tightening torque • Net weight 84.7g
