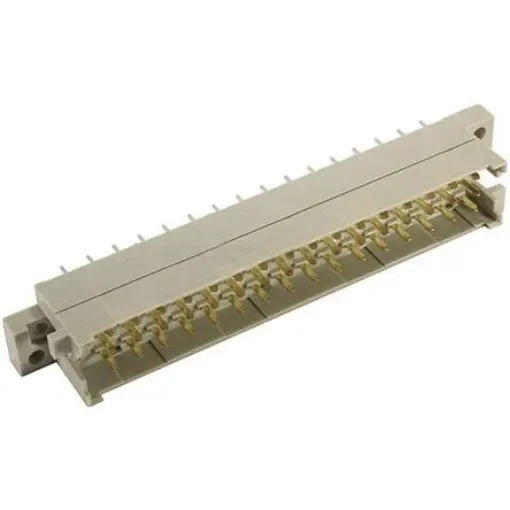

HARTING 09 06 32 Way 5.08mm Pitch, Type F, 2 Row, Straight DIN 41612 Connector, Plug - 09060322905

Number of Contacts = 32
Gender = Male
Number of Rows = 2
Body Orientation = Straight
Termination Method = Solder
Row Loading = d/b
Type = F
Pitch = 5.08mm
Contact Plating = Gold over Palladium Nickel over Nickel
Current Rating = 6A
Contact Material = Copper Alloy
Series = 09 06mO
Minimum Operating Temperature = -55°C

For suitable crimp tools where applicable see stock no. ; 740-6666 740-6666 and die set ; 740-6663 740-6663. Harting DIN 41612 Type F Backplane Power Connectors. A durable range of DIN 41612 Type F backplane power edge connectors suitable for many applications including railway transportation and power supplies, allowing reliable board to board PCB and cable to board connections. Robust and hardwearing and available in a variety of termination methods. Stock numbers ; 757-7939 757-7939 , ; 757-7910 757-7910 , ; 757-7914 757-7914 , ; 757-7973 757-7973 , ; 757-7923 757-7923 and ; 757-7982 757-7982 are railway approved with a railway classification of NFF 16-101, Smoke index: F1, Flammability class: I2. 5.08mm contact pitch Operating temp -55 to +125 °C 6A max per contact Contact resistance up to 15mO Thermoplastic resin - glass fibre filled Copper alloy contacts
