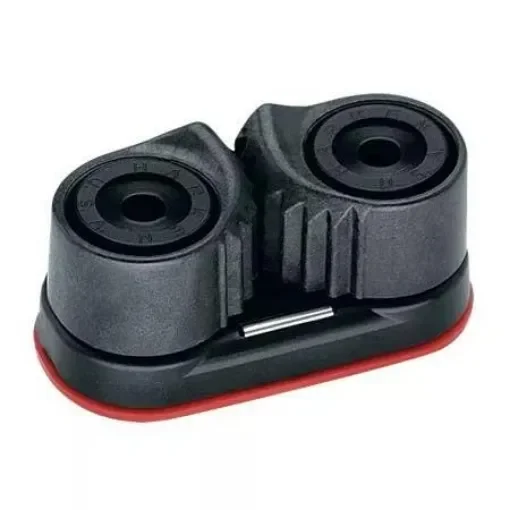

The Harken Micro Carbo-Cam Cleat is a lightweight, high-performance cleat designed for sailors seeking a combination of strength and minimal weight. Constructed with fiber-reinforced composite materials, it offers a secure grip on lines while enabling quick and controlled release. Its compact design and ease of installation make it ideal for small boats and dinghies.
- Ultra-light and Strong: Constructed with fiber-reinforced composite materials for strength without added weight.
- High-End Composite Materials: Utilizes advanced materials for durability and performance.
- Matrix Carbon Jaws: Equipped with plastic carbon-matrix pawls for reliable line engagement.
- Firm Hold and Controlled Release: Ball bearing cam cleats hold lines securely and release instantly for easy, precise trimming.
- Ideal for Small Boats and Dinghies: Compact design suitable for lightweight applications.
- Easy to Install and Use: Designed for straightforward installation and operation.
Technical Specifications:
- Minimum Rope Diameter: 3 mm (1/8 in)
- Maximum Rope Diameter: 6 mm (1/4 in)
- Length: 48 mm (1 7/8 in)
- Width: 24 mm (15/16 in)
- Height: 22 mm (7/8 in)
- Weight: 19 g (0.67 oz)
- Fastener Spacing: 27 mm (1 1/16 in)
- Fasteners: #8 RH in (4 RH mm)
- Maximum Working Load: 68 kg (150 lb)
- Breaking Load: 136 kg (300 lb)
Materials:
- Pawls: Plastic carbon-matrix
Dimensions:
- Length: 48 mm (1 7/8 in)
- Width: 24 mm (15/16 in)
- Height: 22 mm (7/8 in)
- Weight: 19 g (0.67 oz)
Compatibility Information: The Micro Carbo-Cam Cleat is suitable for small boats and dinghies, accommodating lines with diameters between 3 mm and 6 mm. Its compact design and lightweight construction make it ideal for applications where weight is critical, such as racing or performance sailing.
