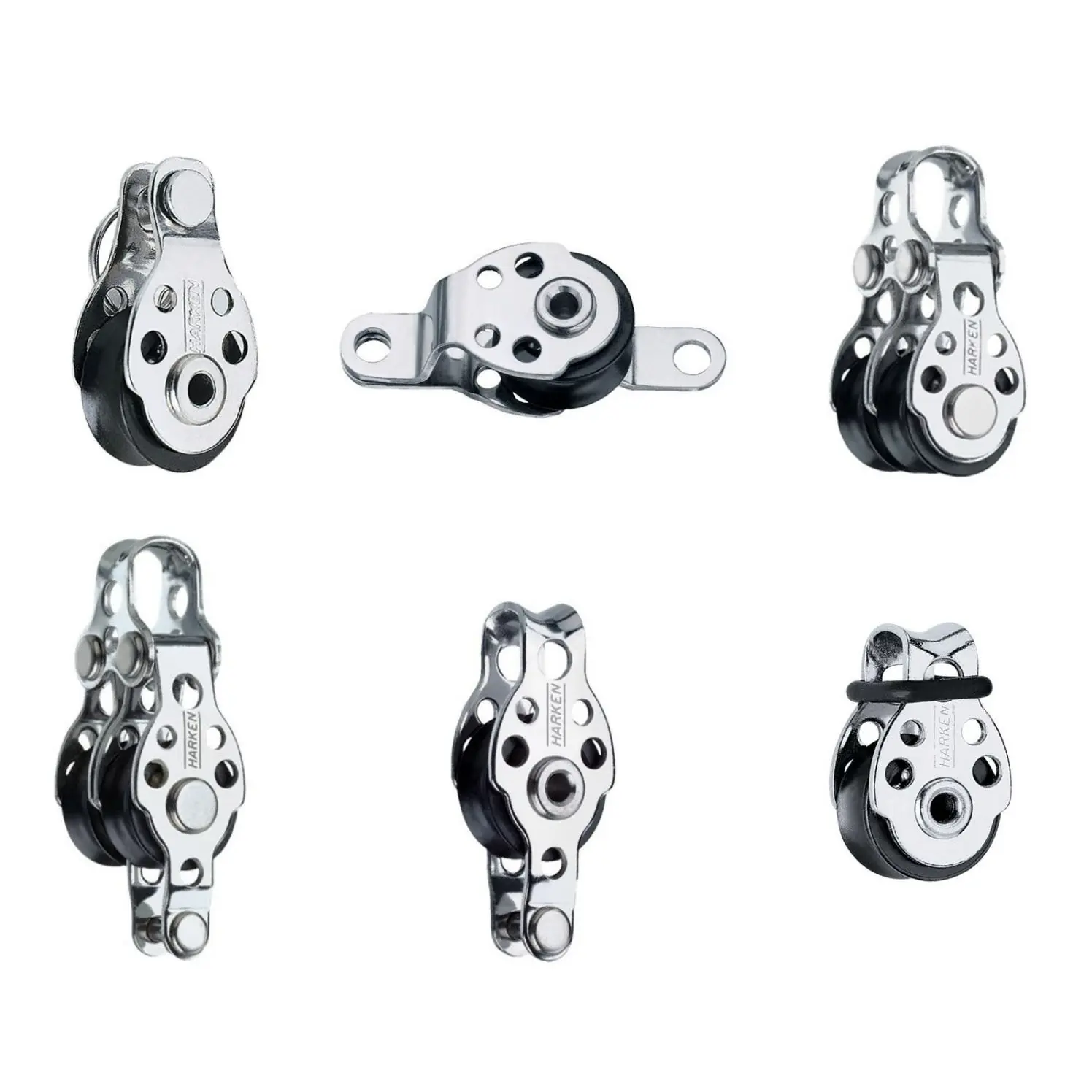

The Harken 16mm Airblock Pulley is the smallest in Harken's range, designed for optimal performance in compact applications. Ideal for small synthetic control lines on high-tech dinghies, it features a patented bearing system with stainless steel balls in a captive grooved race, ensuring smooth rotation under load. The O-ring holds the line in the sheave during intermittent loading, enhancing reliability.
- Exceptional Strength: Maximum working load of 113 kg (250 lbs) and a breaking load of 544 kg (1,200 lbs).
- Compact Design: Smallest block in Harken's range, perfect for small synthetic control lines.
- Smooth Rotation Under Load: Patented bearing system with stainless steel balls in a captive grooved race.
- High-Quality Materials: Constructed with durable materials for longevity.
- Ideal for Dinghies and Racing Yachts: Perfect for small synthetic control lines on high-tech dinghies.
Technical Specifications:
- Sheave Diameter: 16 mm
- Length: 29 mm
- Weight: 10 g
- Maximum Line Diameter: 5 mm
- Maximum Working Load: 113 kg (250 lbs)
- Breaking Load: 544 kg (1,200 lbs)
Materials:
- Cheeks: Stainless steel
- Ball Bearings: Stainless steel
- Sheave: High-quality composite material
Compatibility Information:
Designed for small synthetic control lines on high-tech dinghies, suitable for applications such as:
- Dinghy control lines
- Spinnaker pole trip lines
- Big boat leech lines
- Outhauls
- Downhauls
- Cunninghams
- Traveler controls
- Halyards on prams
