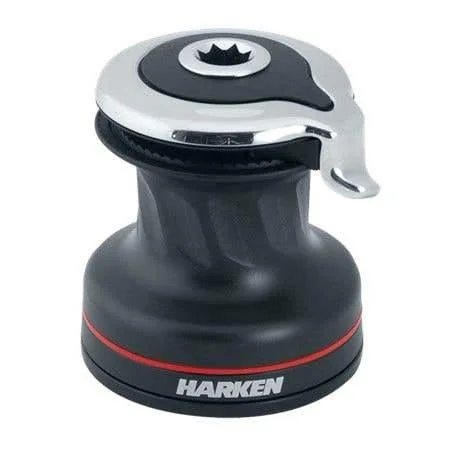

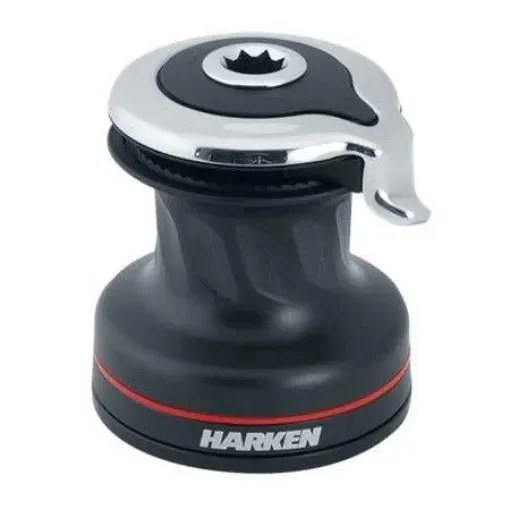

The Harken 15 Self-Tailing Radial Aluminum Winch is engineered to enhance the sailing experience by providing robust performance and precision. Ideal for small pleasure sailing boats up to 9 meters in length, this single-speed winch facilitates quick sheet adjustments and efficient halyard tensioning.
- Self-Tailing Mechanism: Enables a single crew member to hoist or adjust sails effortlessly, enhancing operational efficiency.
- Radial Grip Design: Features a drum with non-abrasive diagonal ribs that increase holding power while reducing line wear.
- Durable Construction: Crafted with an aluminum drum and corrosion-resistant composite bearings, ensuring longevity and minimal maintenance.
- User-Friendly Installation: Harken's patented stud mounting system allows for easy installation without the need to remove the drum, simplifying maintenance and reassembly.
Technical Specifications:
- Weight: 2.1 kg
- Drum Diameter: 73 mm
- Base Diameter: 120 mm
- Height: 139 mm
- Line Entry Height: 58 mm
- Minimum Line Diameter: 6 mm
- Maximum Line Diameter: 10 mm
- Mounting Diameter: 100 mm
- Gear Ratio: 2.43:1
- Power Ratio: 16.90:1
Materials:
- Drum and Base: Aluminum
- Bearings: Corrosion-resistant composite
- Gears and Shafts: 17-4 PH stainless steel
Compatibility Information: Designed for use with lines ranging from 6 mm to 10 mm in diameter, making it suitable for various small to medium-sized sailing vessels.
