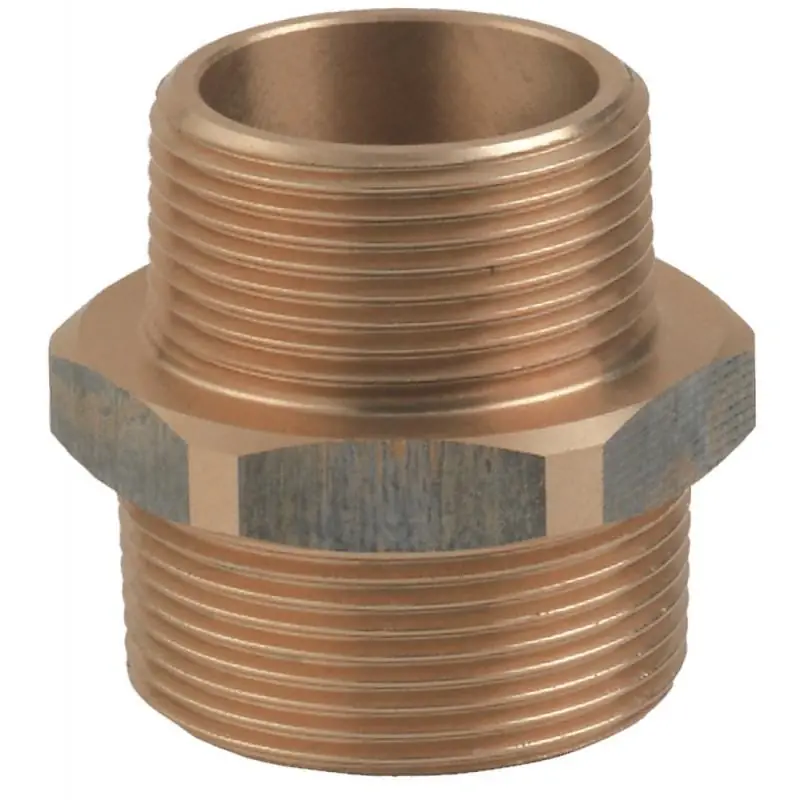

The Guidi Bronze Male-Male BSP Reduction is a high-quality bronze fitting designed for marine applications, particularly suitable for below-waterline installations. Crafted from premium bronze alloy (UNI 7013/8), it offers exceptional resistance to galvanic corrosion, making it ideal for both salt and fresh water environments.
- Material: Premium bronze alloy (UNI 7013/8)
- Thread Type: Male BSP (British Standard Pipe) threads conforming to ISO 228/1 (BS 2779)
- Corrosion Resistance: High resistance to galvanic corrosion, suitable for below-waterline use
- Application: Designed for marine environments, including salt and fresh water applications
Technical Specifications:
- Thread Size: Available in various sizes, including 3/8" x 1/4", 1/2" x 1/4", 1/2" x 3/8", 3/4" x 1/2", 1" x 1/2", 1" x 3/4", 1-1/4" x 3/4", 1" x 1-1/4", 1-1/2" x 1-1/4", and 2" x 1-1/2"
- Material Composition: Contains less than 6% zinc, enhancing corrosion resistance
Materials:
Dimensions:
- Length (H): Varies by size; for example, the 1-1/2" x 1-1/4" model has a length of 52 mm
- Width (SW): Varies by size; for the 1-1/2" x 1-1/4" model, the width is 52 mm
Compatibility Information:
- Thread Compatibility: Compatible with male BSP threads conforming to ISO 228/1 (BS 2779)
- Application Compatibility: Suitable for marine applications, including salt and fresh water environments
