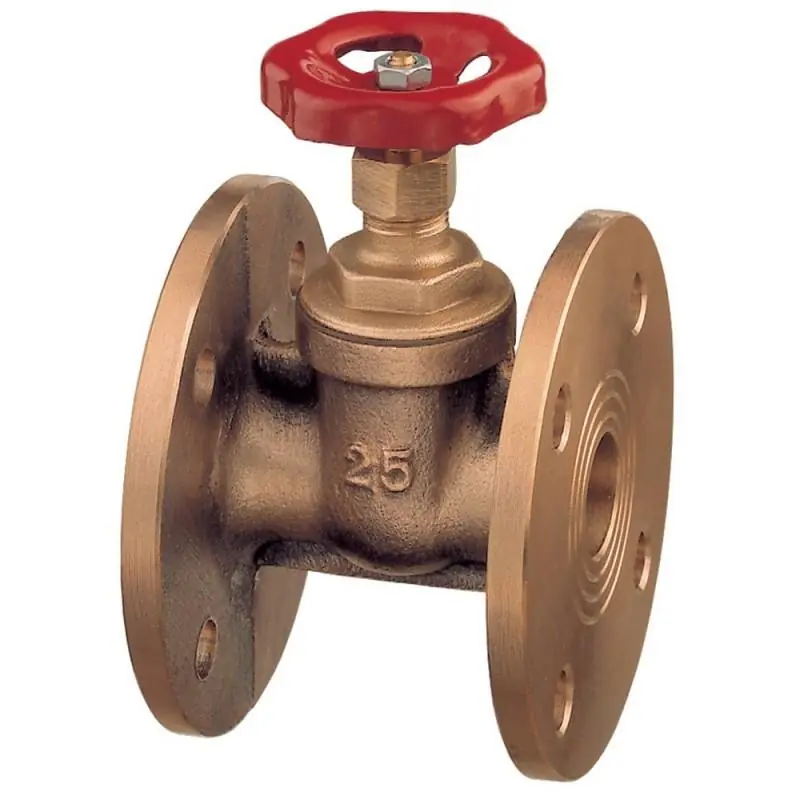

The Guidi Bronze Flanged Valve PN6 DN20 is a high-quality valve designed for marine applications, offering reliable performance and durability.
- Material: Constructed from bronze, ensuring resistance to corrosion and longevity in marine environments.
- Flange Rating: PN6, suitable for systems operating at pressures up to 6 bar.
- Flange Type: Flanged design for secure and leak-proof connections.
- Size: DN20, corresponding to a nominal diameter of 20 mm.
Technical Specifications:
- Pressure Rating: PN6, indicating a maximum working pressure of 6 bar.
- Temperature Range: Typically suitable for temperatures ranging from -10°C to 120°C, depending on the specific application and fluid.
- Connection Type: Flanged ends for easy installation and maintenance.
Materials:
- Body: Bronze, offering excellent resistance to seawater corrosion.
- Seals: Neoprene gaskets (sold separately) for effective sealing.
Dimensions:
- Height (H): 92 mm
- Length (L): 80 mm
- Valve Length (V): 60 mm
Compatibility Information:
This valve is compatible with standard PN6 flanged connections and is suitable for use in marine piping systems where bronze components are preferred for their corrosion resistance.
Additional Details:
- Weight: Approximately 2 kg
- Packaging: Loose packaging
- Availability of Flanges and Gaskets: Flanges and neoprene gaskets are available separately.
