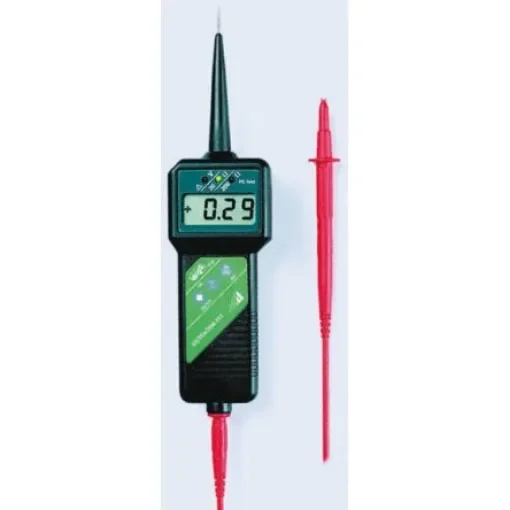

Gossen Metrawatt METRAOHM 413 Ohmmeter, 200 O Max, 10mO Resolution - M630A

Maximum Resistance Measurement = 200 O
Resistance Measurement Resolution = 10mO
Battery Type = 9V
Power Source = Battery
Weight = 180g
Height = 40mm
Length = 60mm
Maximum Accuracy = +1.5% + 4 digits
Maximum Operating Temperature = +50°C
Minimum Accuracy = ±1.5% + 4 digits
Width = 230mm

Gossen Metrawatt Low Resistance OhmmeterThe Gossen Metrawatt digital ohmmeter is a battery-powered instrument for the measurement of low-value resistances up to 200ohm in electrical systems. Large protective conductor, earthing, equipotential bonding and lightning protection systems can also be tested quickly and safely with the help of this device. Resistance is measured between reference earth (e.g. an equipotential bonding strip) and any desired points to this end. A measuring current rating of 200mA (in the 20ohm range) and automatic functions assure reliable measuring results.Features and BenefitsCompact and durable for rugged service calls and laboratory use Indication of interference voltage Measurement cable zero balancing Offset Balancing Measuring ranging between 0.01ohm and 1999kohm Overvoltage protection protects the instrument in the event of inadvertent connection to mains voltageApplicationsFuse and cable resistance Instrumentation systems Relays power contactors and load interrupters Transformers, coils and small motorsCertificationsEN 50081-1 EN 50082-1 EN 61557-1 EN 61557-4 IEC 60529 IEC 61010-1 IP65 rated
