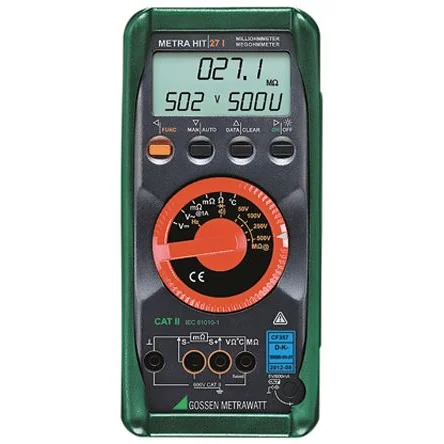

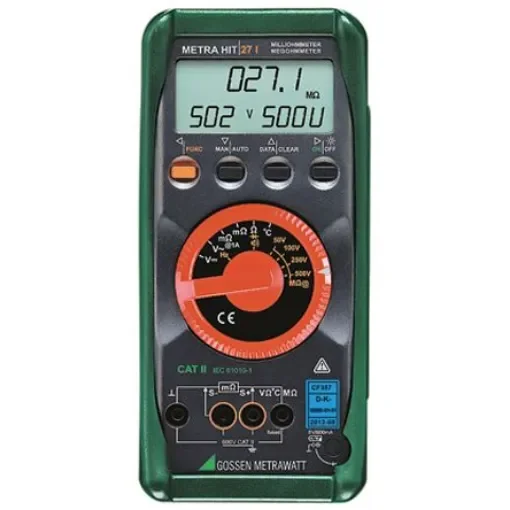

Gossen Metrawatt METRAHit 27i Handheld Digital Multimeter, 1A ac Max, 600V ac Max - M227B

Multimeter Type = Handheld
Display Type = Digital
Functions Measured = AC Voltage, DC Voltage, Resistance, Temperature
Absolute Maximum Resistance Measurement = 30MO
Absolute Maximum Temperature Measurement = +600°C
Maximum Frequency = 3kHz
AC Voltage Measurement Resolution = 100µV ac
Safety Category Level = CAT II°C
Maximum Operating Temperature = +50°C

CAT II-600V. Protective rubber cover with carrying strap, 3 x size AA NiMH batteries, mains power battery charger, measurement cable set, abbreviated operating instructions, operating instructions D/GB/F, adapter USB-HIT including USB cable and system software METRAwin®10/METRA HIT on CD-ROM, DAkkS calibration certificate. M227B Metra Hit 27I Digital Multimeter. The Metra Hit multimeter is a compact milliohm resistance meter plus digital multimeter and thermometer for the measurement of low-value contact resistance on aircraft outer skins (lightning protection, wick test), and for general low-resistance measurements. The multimeter is also used for service and repair work performed on airplane and helicopter electrical systems (voltage, insulation, milliohm and temperature measurement) In addition to its own multimeter functions for electrical quantities, the instrument also includes a mega-ohm measuring function with insulation test voltages of 50, 100, 250 and 500 V, as well as temperature measurement with Pt100 and Pt1000 sensors Insulation resistance measurement 30 MOhm to 3 GOhm with adjustable test voltage of 50, 100, 250, or 500 Vdc Milliohmmeter with 1 A measuring current and 200 mA measuring current Kelvin connection (4-wire measurement) Resistance measurement from 300 Ohm to 30 MOhm Voltage measurement from 3 to 600 Vdc and 3 to 600 Vac with ±30.000 digits LCD display with backlight Frequency measurement from 300 Hz to 3 kHz Memory for up to 1,200 measured values Continuity and diode testing Overload protection
