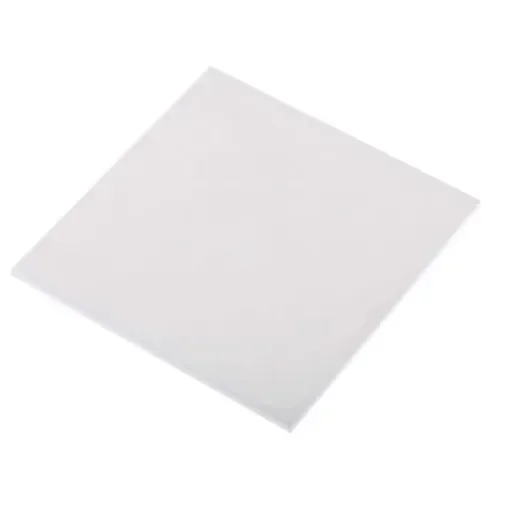

Goodfellow Machinable Glass Ceramic Sheet 100mm x 100mm x 3mm - 1583168
High-quality machinable glass ceramic sheet for precision manufacturing and high-temperature applications.
Manufacturer part number: 1583168
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Material = Machinable Glass Ceramic
Length = 100mm
Width = 100mm
Thickness = 3mm
Colour = White
Density = 2.52g/cm³
Thermal Conductivity = 1.46W/mK
Hardness = A 48 Rockwell
Fracture Toughness = 1.53MPa
Compressive Strength = 35kg/mm²
Water Absorption = 0%
Maximum Operating Temperature = +800°C
Trial pack (RS Stock number ; 158-3203 158-3203 ) contents: 1 of 10dia x 50mm Rod, 1 of 10x10x25mm Sq Bar, 1 of 25x50x3mm Sheet. Macor® Machinable Glass Ceramic. Macor® is a registered trademark of Corning Inc.. For the manufacture of precision components utilising ordinary metalworking tools No post firing required Non-wetting, 0% porosity and no deformation Max no load temperature: 1000°C Continuous operating temperature: 800°C Machining tolerances approach 0.013mm (polished smoothness of 0.013mm is achievable) Can be sealed and joined to itself and to other materials White in colour
