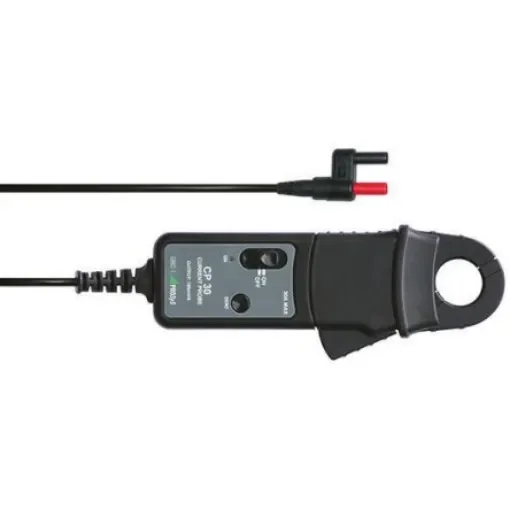

GMC-I Prosys CP- 30 Current Clamp, 30A DC Max, AC/DC Adapter, 30A ac AC Max, Current Output - CP 30

Adapter Type = AC/DC
Maximum DC Current = 30A
Maximum AC Current = 30A ac
Best Accuracy = ±1% + 2 mA
Resolution = 1 mA
Maximum Conductor Size = 25mm
Safety Category = CAT III 300V
Output Type = Current
Connector Type = 4 mm Plug
Battery Type = 9 V
Battery Life = 30 h
Cable Length Extended = 1.5m
Maximum Operating Temperature = +50°C
Minimum Operating Temperature = 0°C
Safety Category Level = CAT IIIV

1 x PP3 9V alkaline battery ; instructions. CP3 Series AC/DC 30A Current Probes. Precision current clamp suitable for non-intrusive current measurements in electrical electronic, process and light industrial systems, automotive systems, battery performance testing and battery charging systems. The CP 30 and CP 35 tool uses Hall Effect technology and can measure currents accurately with a resolution of 1mA from 5mA to 30 Amps over the frequency range of DC to 100kHz Options include: CP 30 AC/DC Current Probe - ; 705-1894 705-1894 CP 35 AC/DC Current Probe - ; 705-1904 705-1904. Features and Benefits:. ;ul> ;li>30A AC/DC measurement range ;/li> ;li>Simple push button auto zero ;/li> ;li>Auto power off conserves battery life ;/li> ;li>Wide bandwidth ; high external field rejection ;/li> ;li>Excellent accuracy over full range ;/li> ;li>EN61010 Safety Rating CAT III 300V ;/li> ;li>Dimensions (HxWxD) – 194x74x25 mm ;/li> ;li>Jaw capacity 25 mm ;/li> ;li>Weight 320g ;/li> ;/ul>. Applications:. These current probes can be used with oscilloscopes to give accurate, non-intrusive measurements of AC, DC and complex waveform currents. ;ul> ;li>Light industrial and residential electrical installation testing ;/li> ;li>Leakage current measurements ;/li> ;li>Process control ;/li> ;li>Battery charging systems ;/li> ;li>Automotive e.g., leakage current measurement on car battery lead ;/li> ;/ul>
