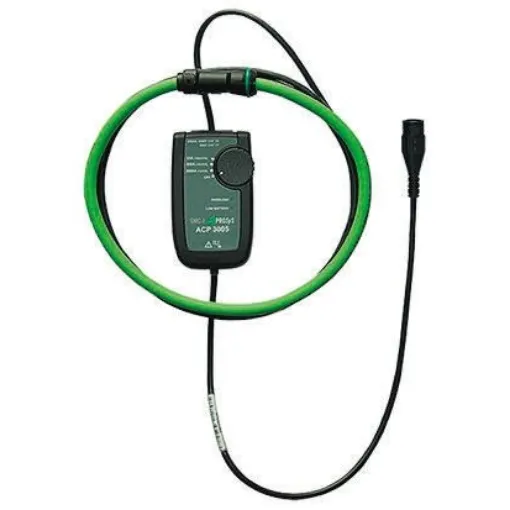

GMC-I Prosys ACP 3005/24 Current Probe, AC, Rogowski Coil Adapter, 3kA ac AC Max
Accurate AC current measurements up to 3kA with the GMC-I Prosys Rogowski coil adapter.
Manufacturer part number: ACP 3005/24
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Adapter Type = AC, Rogowski Coil
Maximum AC Current = 3kA ac
Best Accuracy = ±1% + 0.1 A
Maximum Conductor Size = 180mm
Safety Category = CAT IV 600 V, CAT III 1000V
Maximum Bandwidth = 20kHz
Model Number p = ACP 3005/24
Safety Category Level = CAT IV, CAT IIIV
Instruction manual. ACP3 Series Flexible 3000Aac Current Probes. Superior measurement range from 100mA to 3000 Aac 2000 Hours continuous battery life (two AA MN1500 LR6 alkaline batteries, not supplied) Low battery and range overload indication Range selection by robust rotary switch High external field rejection Excellent accuracy over full range Small diameter (10mm) Rogowski coil with compact link for access to confined areas. Coil head connection sealed to IP65 EN61010 Safety Rating CAT IV 600V, CAT III 1000V
