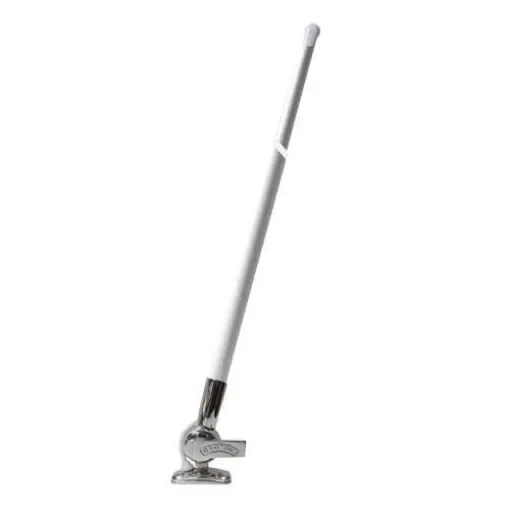

The Glomex RA104 VHF Antenna is engineered for small to medium-sized vessels, offering reliable communication capabilities at sea. Its robust construction and user-friendly design make it an excellent choice for marine communication needs.
- Durable Construction: Crafted from double-layer fiberglass and protected by five coats of UV-resistant polyurethane varnish, ensuring longevity and resistance to harsh marine environments.
- Integrated Mounting System: Equipped with a two-way stainless steel integrated mount, facilitating straightforward installation and a clean aesthetic.
- Optimal Performance: Features an internal ½ wave antenna element that provides an extended horizontal transmission angle, enhancing communication range and clarity.
Technical Specifications
- Frequency Range: 156-162 MHz
- Gain: 3 dB
- Maximum Input Power: 100 W
- Impedance: 50 Ohms
- Polarization: Vertical
- Standing Wave Ratio (SWR): ≤ 1.3 at 156.8 MHz
- Length: 1 meter
- Weight: 180 grams
- Cable Included: 4.5 meters of RG58 coaxial cable
- Mounting Accessories: Bidirectional bracket, PL259 male connector
Materials
- Antenna Tube: Double-layer fiberglass
- Protective Coating: Five layers of UV-resistant polyurethane varnish
- Mounting Bracket: Stainless steel
Dimensions
- Length: 100 cm
- Width: 10 cm
- Height: 10 cm
Compatibility Information
The RA104 VHF Antenna is compatible with standard marine VHF radios operating within the 156-162 MHz frequency range and is designed for easy integration with existing marine communication systems.
