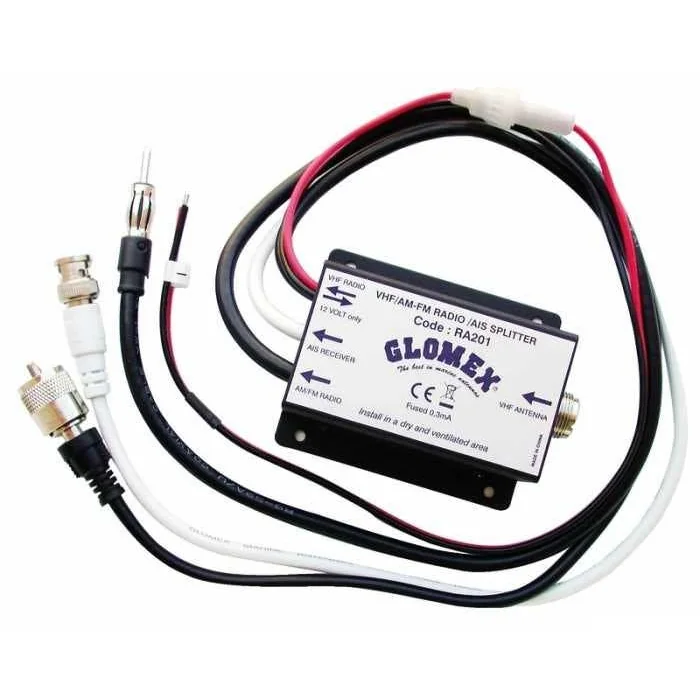

The Glomex RA201 VHF/AIS/AM-FM Radio Splitter is a compact and efficient device designed to allow a single VHF antenna to simultaneously receive VHF, AM/FM, and AIS radio signals without compromising performance. This splitter is ideal for marine applications, ensuring effective transmission and reception across all three radio systems.
- Simultaneous Signal Reception: Enables the use of one VHF antenna to receive VHF, AM/FM, and AIS signals concurrently.
- Built-in Preamplifier: Features a 15 dB preamplifier shared between the AM/FM and AIS inputs to compensate for power loss.
- High VHF Power Handling: Supports VHF power levels from 0.2 watts to 100 watts, accommodating a wide range of marine radios.
- Low Power Consumption: Operates with a maximum current draw of 25 mA, making it energy-efficient.
- Wide Voltage Range: Accepts a voltage supply from 10 V to 16 V, with an optimal operating voltage of 13.8 V.
- Durable Construction: Encased in a housing with anti-spreading metal-epoxy paint, offering high resistance to rust and oxidation.
Technical Specifications
- Impedance: 50 Ohms
- Radio Reception Range: 100 KHz to 200 MHz (including GO/PO/OC/FM)
- VHF Transmission/Reception Range: 100 MHz to 200 MHz (marine/ham radio)
- AIS Reception Range: 100 MHz to 200 MHz
- VHF Power Range: 0.2 watts to 100 watts
- Power Supply: 12 V DC (10 V to 16 V)
- Current Draw: 25 mA
- Cable Lengths: 60 cm (2 feet) for each connection
- Connectors: VHF Antenna: SO-239 jack, VHF Radio: RG-58 C/U cable with male PL-259 plug, AM/FM Radio: RG-59 A/U cable with male Motorola plug, AIS Receiver: RG-58 C/U cable with male BNC plug
- Housing Dimensions: 83 mm (L) x 48 mm (W) x 38 mm (H)
- Mounting: Fixed using four M4 screws
Materials
- Housing: Metal with anti-spreading metal-epoxy paint for enhanced durability
- Cables: High-quality RG-58 C/U and RG-59 A/U cables with appropriate connectors
Compatibility Information
The RA201 splitter is compatible with various marine VHF radios, AM/FM radios, and AIS receivers that operate within the specified frequency ranges and power levels. It is suitable for use with "receiver only" AIS devices and is not intended for AIS transponder devices.
