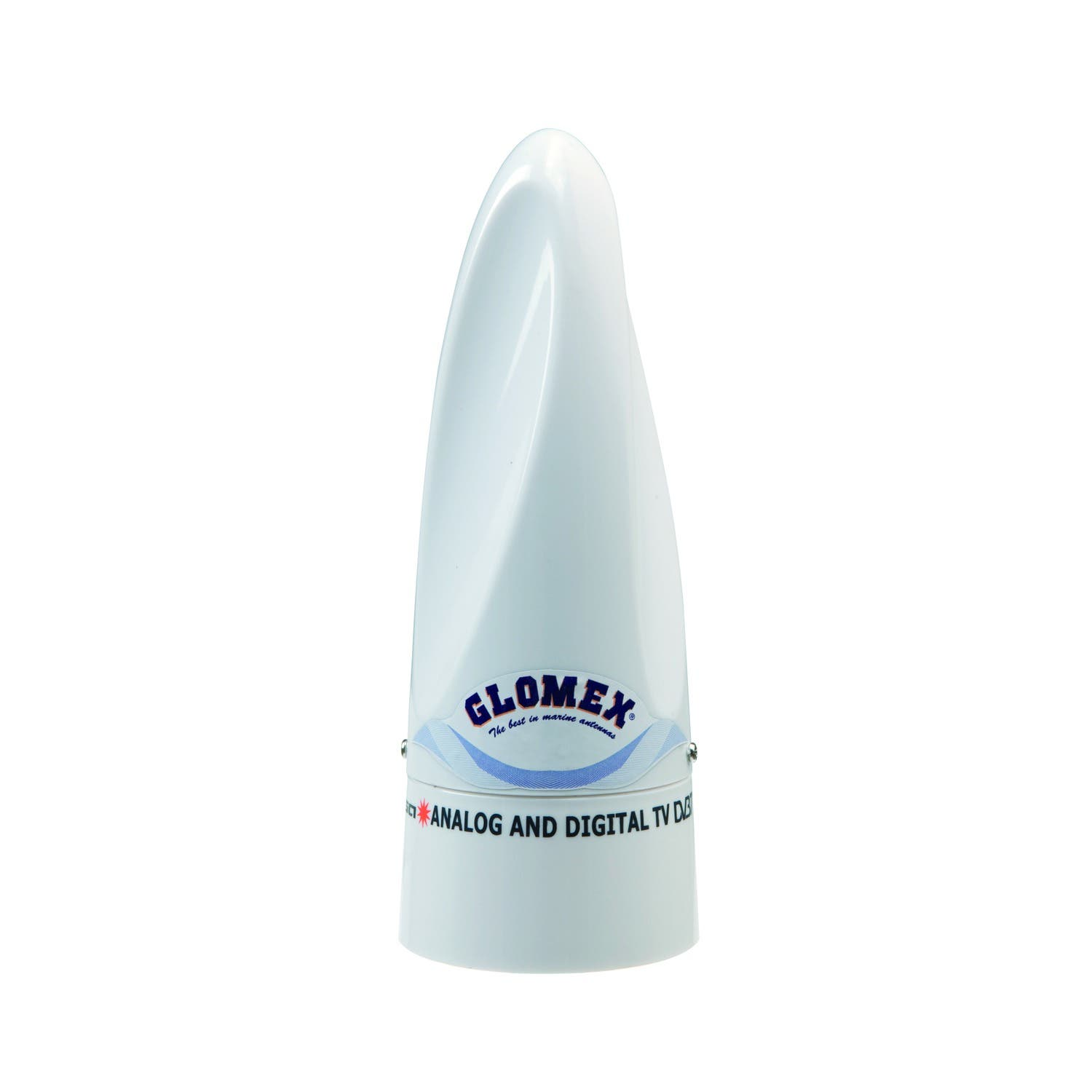

Key Features:
- Omnidirectional Reception: Provides 360° reception for both TV and AM/FM radio signals, ensuring consistent performance regardless of boat orientation.
- Dual Polarization: Receives both horizontally and vertically polarized signals, enhancing reception quality.
- Compact Design: Features a diameter of 100 mm (4 inches) and a height of 210 mm (8 inches), with an additional vertical whip extending the height to 560 mm (22 inches), suitable for various boat types.
- Integrated Amplifier: Equipped with an internal amplifier to boost signal strength, coupled with a voltage feeder offering two independent outputs for TV and radio.
- Versatile Installation: Compatible with both sailboats and motorboats; can be paired with the VHF RA121 antenna for comprehensive communication needs.
Technical Specifications:
- Frequency Range: 40–890 MHz
- Gain Average: 24.5 dB
- Noise Factor: 1.7 dB
- Power Consumption: 20 mA
- Power Supply: 12 V DC
- Impedance: 75 ohms
- Connector Type: F-Female
- Connector Supplied: F-Male gold-plated connector (V9144)
Materials:
- Radome Material: UV-resistant ASA plastic, ensuring durability and longevity in marine environments.
Dimensions:
- Antenna Diameter: 100 mm (4 inches)
- Antenna Height: 210 mm (8 inches); 560 mm (22 inches) with vertical whip
- Base Diameter: 25 mm (1 inch)
Compatibility Information:
- TV Systems Supported: Analog and digital terrestrial systems
- Radio Systems Supported: AM and FM frequencies
- Installation Compatibility: Suitable for both sailboats and motorboats; can be matched with the VHF RA121 antenna for enhanced communication capabilities.
Additional Details:
- Mounting Options: Comes with a universal mount; optional stainless steel masthead mount (V9123) available.
- Coaxial Cables Included: 10-meter (33-foot) coaxial cable and a 1.5-meter (5-foot) TV set cord.
- Power Inserter: Includes the V9114PI-FM 2-way power inserter for signal amplification.
