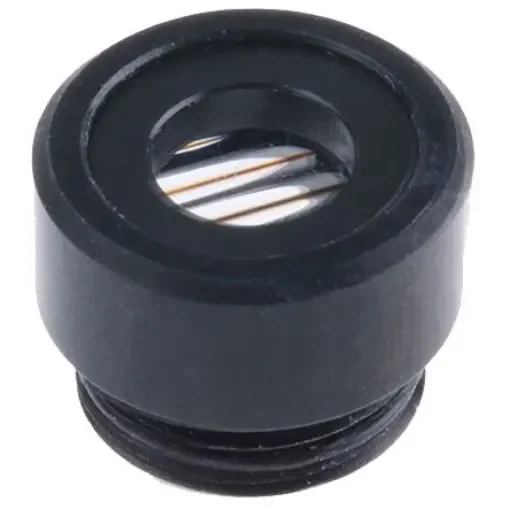

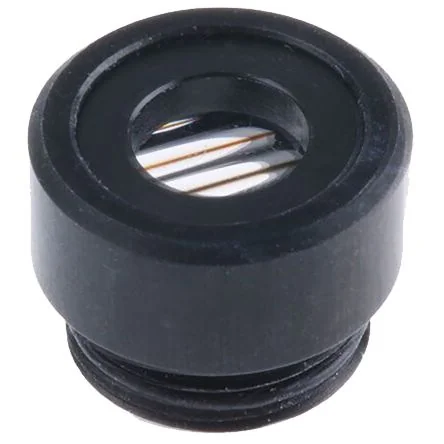

Global Laser 100° fan angle Cross shape Moulded Multi Rod Laser Lens, Exit aperture 5mm - 1125-377-000

Beam Emission Shape = Cross
Lens Type = Moulded Multi Rod
Fan Angle = 100°
Exit Aperture Size = 5mm
Transmission Loss = 0.25

Cross and Line Optics for LaserLyte-Flex. Interchangeable lens elements which can be used to convert the dot projected by a LaserLyte-Flex Laser into a line, cross or 4x4 grid line. The wider angle optics utilise a moulded multi-rod lens; the 9° cross optic has a DOE (diffractive optical element) lens. The optics are for use with ; 697-3557 697-3557 The following optics are available: ; 127-1548 127-1548 Line Optic, 18° ; 127-1549 127-1549 Line Optic, 30° ; 697-3569 697-3569 Line Optic, 60° ; 697-3572 697-3572 Line Optic, 90° ; 697-3579 697-3579 Cross Optic, 9° ; 697-3581 697-3581 Cross Optic, 60° ; 127-1550 127-1550 Cross Optic, 100° ; 127-1547 127-1547 4x4 Grid optic
