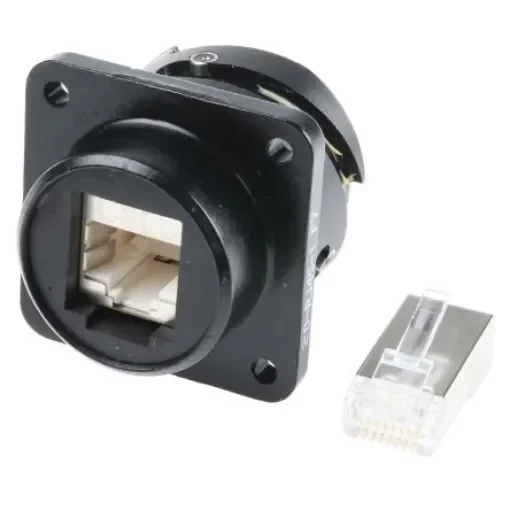

Glenair ITS Series Female RJ45 Connector, Panel Mount, Cat6 Straight - FRITS0220-RJ45-1F7

Glenair MIL-DTL-5015 Connector, Receptacle RJ45 and USB-A Female Bulkhead. Glenair MIL-DTL-5015, RJ45 and USB-A female bulkhead connectors feature a reverse bayonet coupling with a black zinc cobalt plating. These connectors provide a very high level of protection from the most hostile of environments. The RJ45 and USB-A connectors themselves are housed within a rugged waterproof square flange mount panel connector with resilient nitrile inserts providing IP67 protection when mated. RJ45. Connection 10BaseT, 100BaseTx, 1000BaseT Working voltage 30 - 42 Vac RMS/Vdc Maximum current rating 1.5A at 20°C Minimum insulation resistance 1.000mO at 500 Vdc Dielectric withstand voltage 1000 V Operating temperature -40 to + 68° C IP67 when mated. USB-A. Dielectric withstand voltage 500Vac for 1 minute Current rating 1A max. Maximum contact resistance 30mO Minimum insulation resistance 1.000mO at 500Vdc Operating temperature -55 to +105°C IP67 rated when mated
