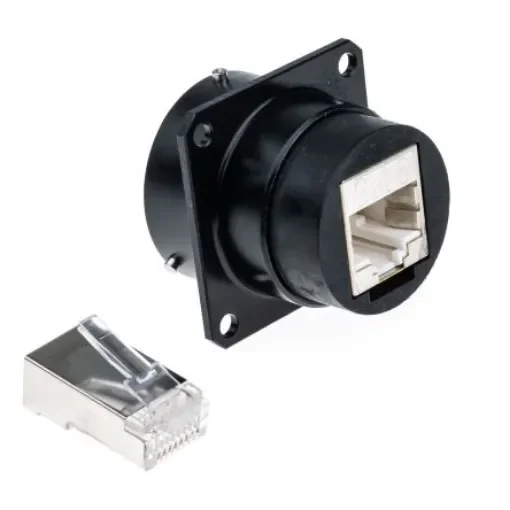

Glenair IPT Series Female RJ45 Connector, Panel Mount, Cat6 Straight - IPT0218-RJ45-1F7
High-performance Glenair RJ45 connector with IP67 rating for reliable Ethernet connections.
Manufacturer part number: IPT0218-RJ45-1F7
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Ethernet Connector Type = RJ45 Connector
LAN Category = Cat6
Mounting Type = Panel Mount
Orientation = Straight
IP Rating = IP67
Length = 33.3mm
Width = 33.3mm
Depth = 30.4mm
Series = IPT
Glenair IPT Series RJ45 Reverse Bayonet Front Panel Mount Connectors. Glenair IPT Series MIL-DTL-26482 RJ45 square flange connectors are sealed RJ45 connectors that provide a very high level of protection from the most hostile of environments. Standard RJ45 connectors are housed within rugged waterproof reverse bayonet panel mount connectors which feature tough resilient nitrile inserts which provides IP67 protection when mated. Category Cat.6 Connection 10BaseT, 100BaseTx, 1000BaseT Working voltage 30 - 42 Vac RMS/Vdc Maximum current rating 1.5A at 20°C Maximum contact resistance 20mO Minimum insulation resistance 1.000mO at 500 Vdc Dielectric withstand voltage 1000 V Operating temperature -40 to + 68° C IP67 when mated
