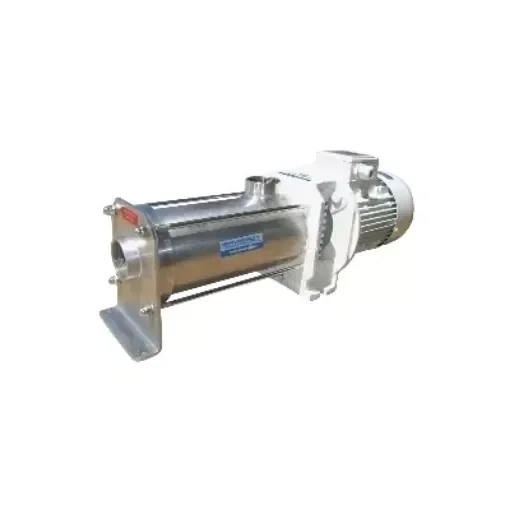

Gianneschi - Single Screw Pump MVI60 - 01GMVI6002

Brand: Gianneschi
The Gianneschi MVI60 is a self-priming single screw pump ideal for drainage and handling viscous fluids.
Manufacturer part number: 01GMVI6002
Vendor: Lyvio Marine

Gianneschi MVI series motor driven pumps

Positive displacement pumps. Self - priming

Materials

  • Stainless steel body
  • Screw - Elastomer stator

Typical Applications

  • Drainage
  • Black waters
  • Sewage
  • Water with small particles in suspension
  • Viscous fluids
Products specifications
Height (mm)223
Voltage(V)230V
Power rating (Kw/Watts)1.1Kw
Detailed SpecificationsMVI60 Voltage: 230 V Frequency: 50 Hz Power: 1,1 kW Max output: 55 L/min @ 1 bar Max pressure: 3 bar @ 45 L/min Inlet/Outlet: 1''1/2 Dim. LxWxH: 580x200x223 mm Weight: 24 kg
Length (mm)580
Width (mm)200
