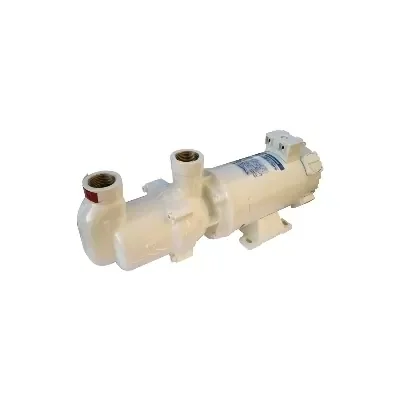

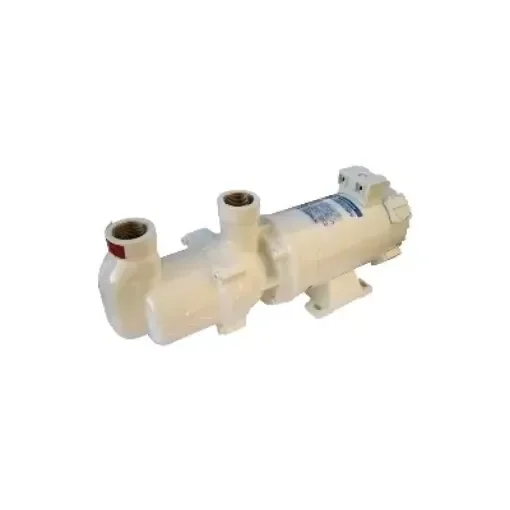

Gianneschi - Single Screw Pump Eco - MV44G - 01GMV341G

Manufacturer: Gianneschi
Reliable self-priming single screw pump for drainage and viscous fluids.
Manufacturer part number: 01GMV341G
Vendor: Lyvio Marine

Gianneschi MVG series motor driven pumps

Positive displacement pumps. Self - priming

Specifications

  • Bronze body
  • Stainless steel screw
  • Elastomer stator

Typical Applications

  • Drainage
  • Black waters
  • Sewage
  • Water with small particles in suspension
  • Viscous fluids
Products specifications
Power rating (Kw/Watts)0.37Kw
Length (mm)430
Width (mm)145
Height (mm)171
Detailed SpecificationsECO-MV44G Voltage: 24 V Power: 0,37 kW Max output: 50 L/min @ 0,3 bar Max pressure: 2,8 bar @ 25 L/min Inlet/Outlet: 1'' Dim. LxWxH: 430x145x171 mm Weight : 17 kg
Voltage(V)24V
