Product Description

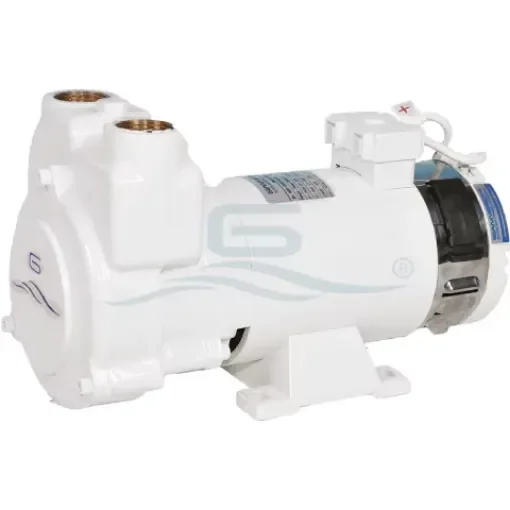

The Gianneschi CP - 40G - 230/400V is a Bronze CP Series Self Priming Liquid Ring Pump and Motor unit with Bronze Impeller, 1 - 1/2 Inch by 1 - 1/2 Inch Ports, coupled to a 0.75 KW (1 Horsepower), 1450 RPM, 230/400 volts AC, 50/60 Hz, Three Phase Motor.
Features
- Bronze impeller and body
- 316 stainless steel shaft
- High quality ceramic mechanical seal with graphite inox
- IP55 protections
- Class F insulation
- Self-priming up to 8 m
- Can go as high as 1750 RPM
- Operates at 60 Hz at 2 Hp
Installation Recommendations
It is recommended that one install a clapet valve and filter with its suction pipe in order to avoid backflow through the pump, and the installed must pump water through it when either rebooting or first initializing it in order to achieve the necessary suction for it to automatically prime itself.
Motor Specifications
- F class Insulation
- IP 55 Protection
Weight
WEIGHT : The Gianneschi CP - 40G - 230/400V weighs 59 Lbs.
