Product Description

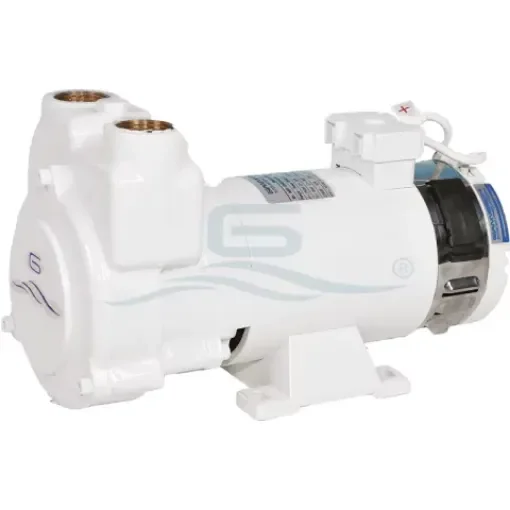

The Gianneschi CP - 20G - 230/400V is a Bronze CP Series Self Priming Liquid Ring Pump and Motor unit with Bronze Impeller, 3/4 Inch by 3/4 Inch Ports, coupled to a 0.37KW (0.5 Horsepower), 2800 RPM, 230/400 volts AC, 50 Hz Motor.
Specifications
- Operating Voltage: 230/400 V
- Frequency: 50 Hz
- Power: 0.5 Hp
- Maximum RPM: 2800
- Self-Priming Height: up to 8 m
- Insulation Class: F
- Protection Rating: IP 55
Construction Features
- High quality ceramic mechanical seal with graphite inox
- Bronze body and impeller
- 316 stainless steel shaft
Installation Recommendations
It is recommended that one install a clapet valve and filter with its suction pipe in order to prevent any backflow through the pump. The installer must pump water through it when rebooting or first initializing it in order to achieve the necessary suction for it to automatically prime itself.
Motor Specifications
| Insulation Class | F |
| Protection Rating | IP 55 |
