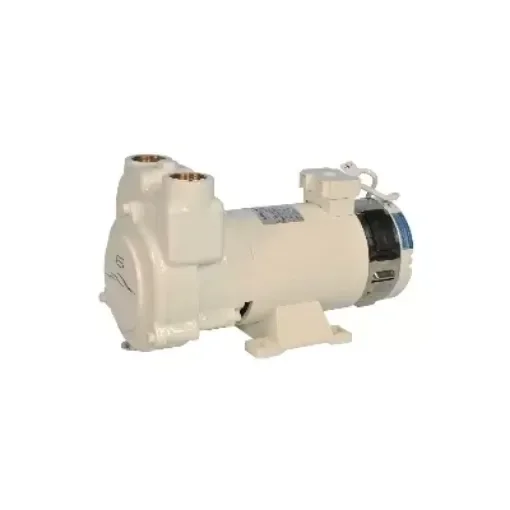

Gianneschi - Liquid Ring Pump CP30/A1 230V - 01ACP302A1

Manufacturer: Gianneschi
Self-priming liquid ring pump ideal for diesel transfer and water discharge.
Manufacturer part number: 01ACP302A1
Vendor: Lyvio Marine

Centrifugal Liquid Ring Pumps

Self - Priming. Can pump either way.

Materials

  • Bronze body and impeller
  • Stainless steel shaft

Typical Applications

  • Diesel transfer
  • Fresh water / sea - water
  • Grey - water discharge
  • Bilge pumping
Products specifications
Height (mm)190
Detailed SpecificationsCP30/A1 230V 230V 50 Hz - 0.37 kW Max Output: 75 L/min @ 0.3 bar Max pressure: 2 bar @ 10 L/min Inlet/Outlet: 1'' Dim. LxWxH: 315x140x190 mm Weight: 12 kg Given pressures are total head converted into bar (10m = 1 bar). 60 Hz motors available on request.
Voltage(V)230V
Power rating (Kw/Watts)0.37Kw
Length (mm)315
Width (mm)140
