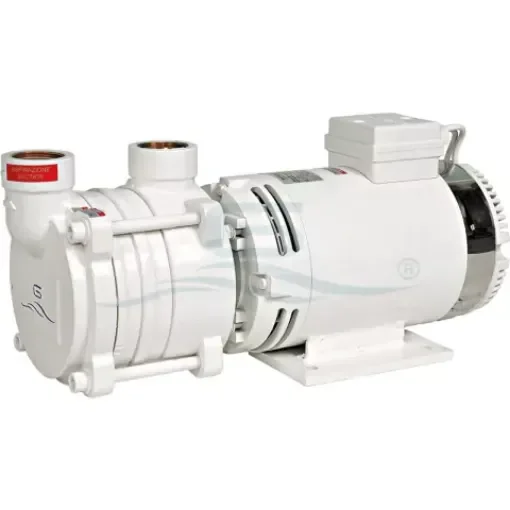

Gianneschi - Liquid Ring Pump ACB331 - 01AAC9811

Manufacturer: Gianneschi
The Gianneschi ACB331 Liquid Ring Pump is a reliable self-priming solution for diverse applications.
Manufacturer part number: 01AAC9811
Vendor: Lyvio Marine

Gianneschi ACB Motor Pump Units

Liquid Ring Pumps. Self - Priming.

Materials

  • Bronze body and impeller
  • Stainless steel shaft

Typical Applications

  • Chain wash - down
  • Fire - fighting
  • Diesel transfer
  • Fresh water / sea - water
  • High air content fluids
Products specifications
Length (mm)445
Width (mm)190
Height (mm)190
Detailed SpecificationsACB331 Voltage: 24 V Power: 0,9 kW Max output : 150 L/min @ 0,3 bar Max pressure : 2,5 bar @ 70 L/min Inlet/Outlet : 1''1/4 Dim. LxWxH : 445x190x190 mm Weight : 28 kg
Voltage(V)24V
Power rating (Kw/Watts)0.9Kw
