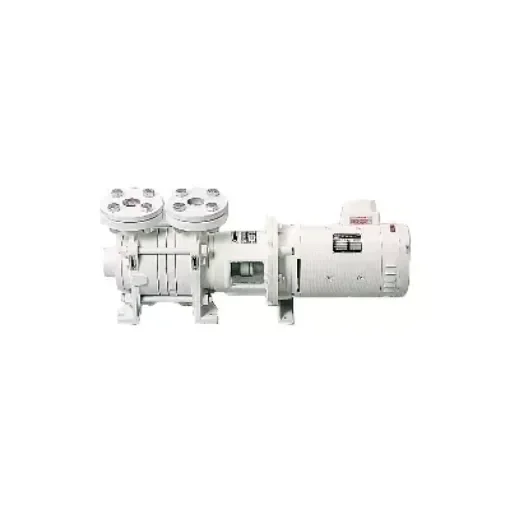

Gianneschi - High Pressure Centrifugal Motor Pump - 01AAM513K

Manufacturer: Gianneschi
Powerful high pressure centrifugal pump with excellent self-priming capabilities.
Manufacturer part number: 01AAM513K
Vendor: Lyvio Marine

Gianneschi Motor Pump Units ACM Series

High pressure centrifugal motor pump units.

Outstanding self - priming capacity.

Bronze body and impeller – Stainless steel shaft.

Top suction and discharge flanges.

Typical application:

  • Fire - fighting
Products specifications
Power rating (Kw/Watts)4Kw
Length (mm)919
Width (mm)300
Height (mm)325
Detailed SpecificationsACM501BT K3 Voltage: 230/400 V Frequency: 50 Hz Power: 4 kW Max output: 400 L/min @ 1 bar Max pressure: 3.6 bar @ 175 L/min Inlet/Outlet: 2" Dim. LxWxH: 919x300x325 mm Weight: 125 kg
Voltage(V)230V/400V
