Product Description

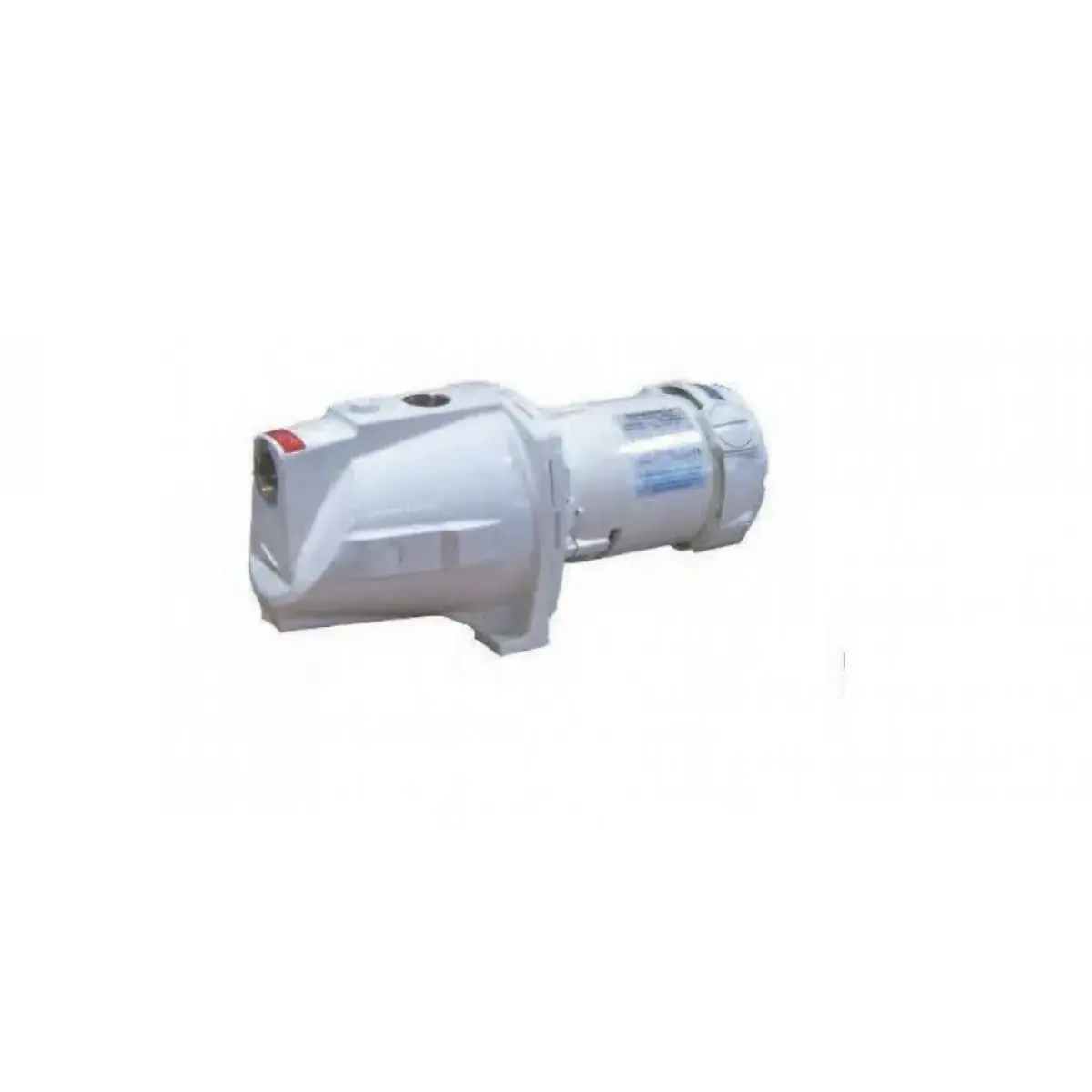

The Gianneschi ECOJET - 2B - 230V is a Bronze ECOJET Series Jet Pump and Motor unit with Brass Impeller, coupled to a 0.55 KW (0.75 Horsepower), 2900 RPM, 230 Volt AC, 50/60 Hz, Single Phase Motor.
Specifications
- Maximum static pressure in the pump casing: 8 Bar (115 PSI)
- Maximum suction depth: 8 meters (25 feet)
- Maximum liquid temperature: 50 degrees C
- Voltage variation for the motor: maximum plus/minus 5 percent
Installation Requirements
- Install the pump in a dry and well ventilated location with a maximum room temperature of 40 degrees C.
- The Pump must be placed on a solid and clean surface in horizontal position, feet down.
- The pump is supplied with threaded ports, so a three piece pipe union is recommended at the suction and discharge ports for ease of maintenance.
- The suction pipe must be completely air tight with continuous upward slope to pump inlet, to avoid air - lack.
- A strainer should be fitted on the suction line to stop foreign materials from damaging the pump.
- A vacuum gauge is recommended where pump performance needs to be closely monitored as well as a check valve/non return valve.
- Before installation, ensure that mains supply is grounded in accordance with local legislation and corresponds to motor plate detail.
- To reduce vibration block the machine with the bolts to the surface and install some vibration dumpers.
