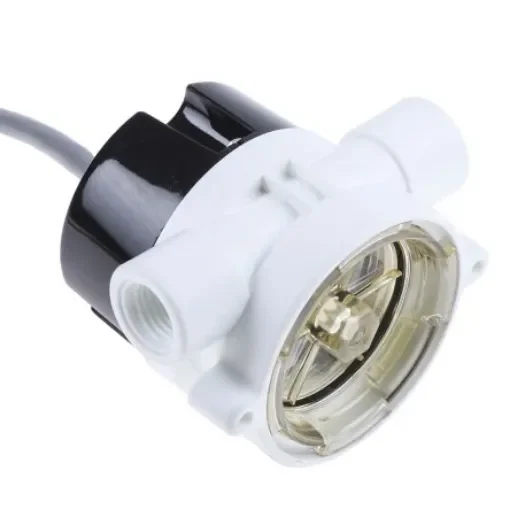

Gems Sensors RFS Series RotorFlow Electronic Flow Sensor for Liquid, 0.1 gal/min Min, 5 gal/min Max - 155425

Media Monitored = Liquid
Device Type = RotorFlow Electronic
Minimum Flow Rate = 0.1 gal/min
Maximum Flow Rate = 5 gal/min
Supply Voltage = 24 V dc
Pipe Diameter Range = 1/4 in
Connection Type = 1/4 NPT Female
Maximum Pressure = 6.9bar
Material = Polypropylene
Maximum Media Temperature = +21°C
Minimum Operating Temperature = -29°C
Series = RFS°C
Current Rating = 20 mA @ 24 V dc (No Load), 35 mA @ 24 V dc (Load)

Gems Sensors Flow SensorThe Gems Sensors RFS series rotor flow electronic sensor sense a liquid flow rate of 0.5gal/min to 5gal/min. It is built on an extra level of reliability and protection to your equipment. By the principle of operation, the rotor cannot be deceived into indicating a positive flow situation in case of no flow. Once set to a desired actuation point, the rotor flow will switch to a ’no-flow’ condition should the rotor stop for any reason. It has an input power of 24VDC.Features and BenefitsPipe diameter range is 1/4in Combines visual confirmation of flow with dynamic, electronic switch operation Easy, adjustable switch point calibration- a local LED signals when set point is reached It is available in polypropylene body material Connection type is 1/4 NPT Female Maximum operating pressure is 6.9bar Maximum operating temperature is 80°CApplicationsSemiconductor processing equipment Lasers Medical equipment X-Ray and other high-power tubes Robotic welding equipmentCertificationsCE certified
